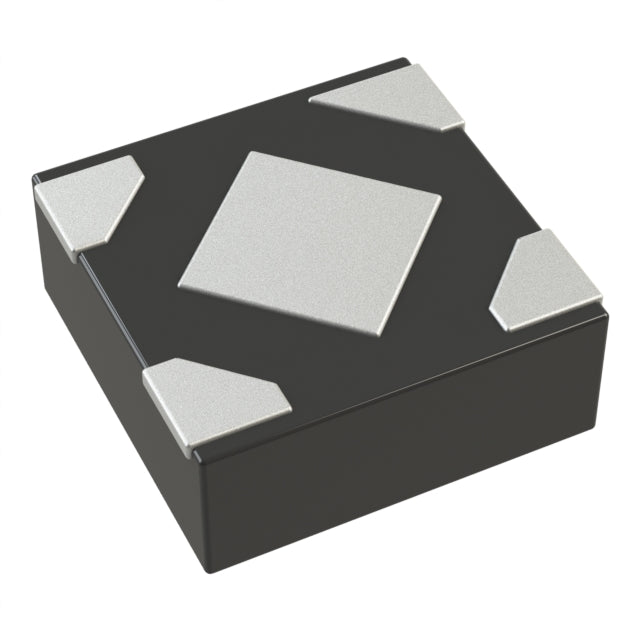

Torex Semiconductor Ltd XC6241B1219R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.37 | $0.37 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.825V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 900 nA |
| Current - Supply (Max) | - |
| PSRR | 60dB (1kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-USPQ-B05 (1x1) |
| ROHS |  |
The XC6241B1219R-G from Torex Semiconductor is an ultra-low-power LDO regulator delivering a fixed 1.2V output with up to 150mA. Its standout feature is a quiescent current of just 900nA, making it exceptional for battery-powered and energy-harvesting applications. Housed in a miniature 4-USPQ-B05 (1x1mm) package, it is designed for space-constrained, power-sensitive designs.
- Ultra-Low Quiescent Current (900nA): Dramatically extends battery life in standby and always-on applications.
- Miniature 1x1mm Package: Enables ultra-compact designs for wearables and IoT devices.
- 150mA Output Current: Sufficient for low-power MCUs and wireless modules.
- 60dB PSRR @ 1kHz: Provides adequate noise filtering for sensitive circuits.
Ultra-Low-Power IoT Sensors
The 900nA quiescent current makes it perfect for always-on sensors in IoT nodes, significantly extending battery life.
Wearable Devices
The tiny 1x1mm package and low power consumption are ideal for smartwatches, fitness trackers, and medical patches.
Energy Harvesting Systems
Power microcontrollers and sensors in energy-harvesting setups where every nanoamp of current is critical.
Real-Time Clock (RTC) Backup Power
Maintain RTC operation during main power loss with minimal battery drain.
Low-Power Wireless Modules
Supply a stable 1.2V rail for BLE, Zigbee, and other low-power wireless transceivers.
Portable Medical Monitors
Ensure reliable, long-lasting operation of glucose monitors and other battery-powered medical devices.
- Q: What is the output voltage of the XC6241B1219R-G?
- A: It provides a fixed 1.2V output.
- Q: What is the maximum output current?
- A: The regulator can supply up to 150mA of output current.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.825V at the maximum load of 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 900nA (0.9µA), ideal for battery-powered applications.
- Q: What is the PSRR performance?
- A: It provides 60dB of power supply rejection at 1kHz.
- Q: What package is available?
- A: It comes in a very small 4-USPQ-B05 (1x1mm) package.
