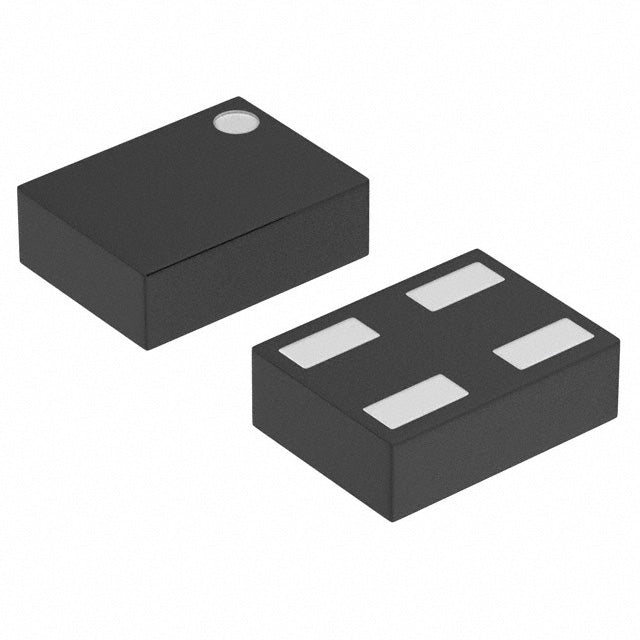

Torex Semiconductor Ltd XC6504A1217R-G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.79 | $0.79 |
| 15+ | $0.76 | $11.40 |
| 25+ | $0.75 | $18.75 |
| 50+ | $0.71 | $35.50 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Torex Semiconductor Ltd |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.93V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 1.27 µA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN |
| Supplier Device Package | USPN-4B02 |
| ROHS |  |
The Torex XC6504A1217R-G is a precision LDO linear regulator offering a fixed 1.2V output with 150mA current capability. With an ultra-low quiescent current of 1.27 µA, it is engineered for battery-powered and energy-sensitive applications. The compact USPN-4B02 package and a dropout voltage of 1.93V at full load make it a versatile solution for low-voltage power management.
- Ultra-Low Power: 1.27 µA quiescent current extends battery life in standby.
- Precise Low Voltage: Fixed 1.2V output ideal for modern low-voltage ICs.
- Miniature Package: USPN-4B02 enables ultra-compact PCB designs.
- Reliable Performance: Stable output ensures consistent operation in demanding conditions.
Low-Voltage Digital Cores
Provides a stable 1.2V supply for modern microcontrollers and digital ICs, ensuring reliable operation at low voltages.
Energy Harvesting Systems
The ultra-low quiescent current of 1.27 µA is perfect for energy harvesting applications where every microamp counts.
Wireless Sensor Nodes
Ideal for powering RF transceivers and sensors in wireless nodes, maintaining efficiency during sleep and active modes.
Portable Audio Players
Delivers clean 1.2V power to audio codecs and DSPs, minimizing noise for better sound quality.
Medical Implantable Devices
Low power consumption and compact USPN-4B02 package make it suitable for implantable devices requiring long battery life.
Smart Meters
Provides reliable low-voltage power for metering ICs, ensuring accurate measurements over extended periods.
- Q: What is the output voltage of the XC6504A1217R-G?
- A: The fixed output voltage is 1.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.93V at 150mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 1.27 µA.
- Q: What package is available?
- A: It comes in the USPN-4B02 package.
