AMD XC7Z020-3CLG484E

AMD Zynq-7000 SoC: XC7Z020-3CLG484E

The XC7Z020-3CLG484E is a high-performance System-on-Chip (SoC) from AMD's Zynq-7000 family, combining the software programmability of a Dual ARM Cortex-A9 MPCore processor with the hardware flexibility of Artix-7 FPGA fabric. Operating at 866MHz with 85K logic cells and 256KB RAM, this device delivers exceptional processing power for embedded applications in aerospace, automotive, industrial automation, medical devices, and telecommunications.

Key Features & Benefits

• Dual ARM Cortex-A9 MPCore with CoreSight: High-performance processing with advanced debug capabilities
• Artix-7 FPGA (85K Logic Cells): Flexible hardware acceleration and custom logic implementation
• Rich Connectivity: CANbus, Ethernet, USB OTG, I2C, SPI, UART/USART, MMC/SD/SDIO interfaces
• 256KB On-Chip RAM: Fast memory access for real-time applications
• DMA Peripherals: Efficient data transfer with minimal CPU overhead
• Industrial Temperature Range: 0°C to 100°C (TJ) for demanding environments

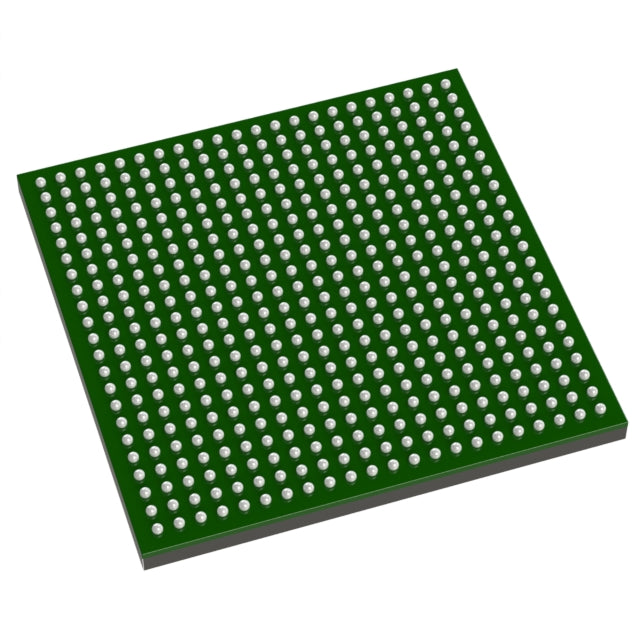

• Compact 484-CSPBGA Package: 19x19mm footprint for space-constrained designs
• Active Part Status: Long-term availability and full manufacturer support
• RoHS Compliant: Meets environmental and regulatory standards

Ideal Applications

This SoC is engineered for applications requiring both high-performance processing and programmable logic, including motor control systems, vision processing, software-defined radio, industrial IoT gateways, medical imaging equipment, and advanced driver assistance systems (ADAS).

Design-In Support

As an authorized distributor, we provide comprehensive technical resources including datasheets, reference designs, development tools, and engineering support to accelerate your time-to-market. All components ship with full traceability documentation and comply with RoHS/REACH regulations.

• XC7Z020-3CLG484E.pdf
