AMD XC7Z045-2FFG676E

AMD Zynq-7000 SoC XC7Z045-2FFG676E – High-Performance Embedded Processing with Programmable Logic

The XC7Z045-2FFG676E is a flagship System-on-Chip (SoC) from AMD's Zynq-7000 family, uniquely integrating dual ARM Cortex-A9 MPCore processors with advanced Kintex-7 FPGA fabric. This powerful heterogeneous architecture delivers 800MHz processing performance combined with 350,000 logic cells, enabling you to accelerate critical functions in hardware while maintaining software flexibility for complex industrial, automotive, aerospace, telecommunications, and medical applications.

Why Choose the XC7Z045-2FFG676E?

• Dual-core ARM Cortex-A9 MPCore with CoreSight – 800MHz processing system for real-time embedded applications with comprehensive debug capabilities
• Kintex-7 FPGA fabric with 350,000 logic cells – Implement custom hardware accelerators, DSP functions, and high-speed I/O interfaces tailored to your application
• 256KB on-chip RAM – Fast, low-latency memory for deterministic data processing and buffering
• DMA engine – Efficient data movement between processors, FPGA fabric, and peripherals without CPU intervention
• Comprehensive connectivity – Ethernet, USB OTG, CANbus, SPI, I2C, UART/USART, MMC/SD/SDIO for seamless integration into existing systems
• Industrial temperature range: 0°C to 100°C (TJ) – Proven reliability for harsh operating environments

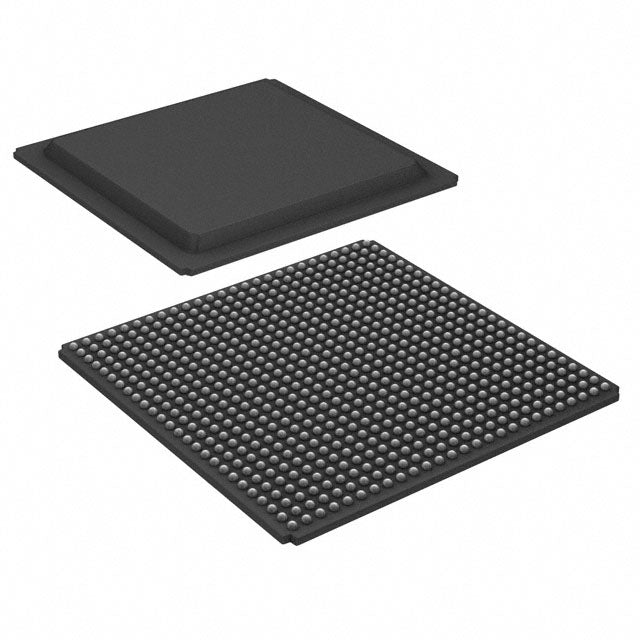

• 676-pin FCBGA package (27x27mm) – Compact footprint with excellent thermal performance
• RoHS compliant, active production status – Long-term availability and environmental compliance for your product lifecycle

Target Applications

This SoC is engineered for applications demanding both high-performance embedded processing and custom programmable logic:

• Industrial Automation – Motor control, machine vision, robotics, PLC systems
• Automotive – Advanced driver assistance systems (ADAS), in-vehicle infotainment, gateway controllers
• Aerospace & Defense – Avionics, radar processing, secure communications, signal intelligence
• Medical Imaging – Ultrasound, CT/MRI processing, real-time image enhancement
• Video Processing – Broadcast equipment, video surveillance, codec acceleration
• Software-Defined Radio – Base stations, spectrum monitoring, cognitive radio
• Test & Measurement – High-speed data acquisition, protocol analysis, waveform generation

Documentation & Support

Full datasheets, reference designs, development tools, and technical support available. Contact us for volume pricing, lead times, and application engineering assistance.

• XC7Z045-2FFG676E.pdf
