AMD XCSU150P-1SBVG784E

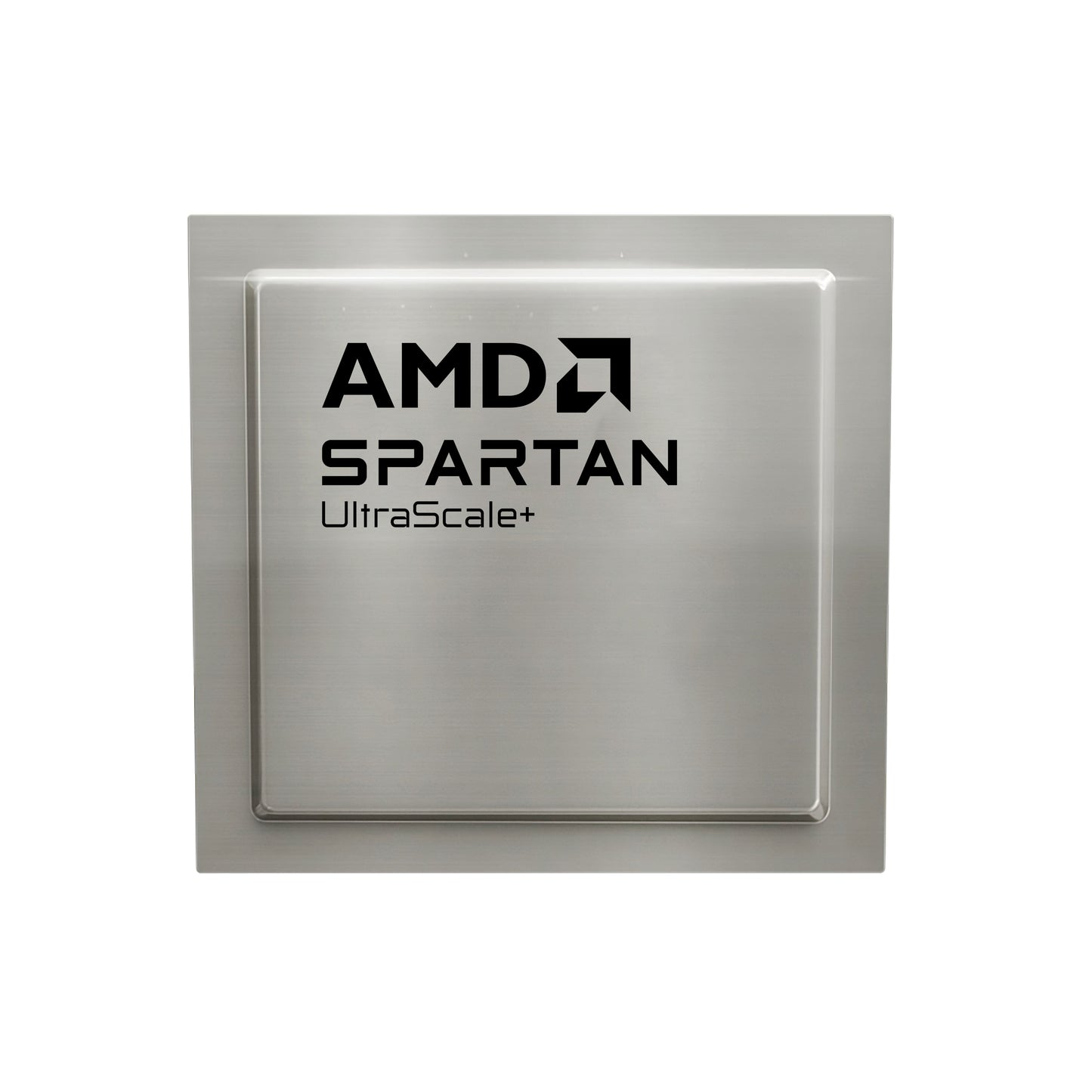

AMD Spartan® UltraScale+™ FPGA - XCSU150P-1SBVG784E

The XCSU150P-1SBVG784E is a high-performance FPGA from AMD's Spartan® UltraScale+™ series, engineered for demanding embedded applications requiring substantial logic resources and exceptional I/O flexibility. This industrial-grade device delivers outstanding performance with 137,813 logic elements and 356 I/O pins in a compact, space-efficient 784-FCBGA package.

Key Features & Benefits

• 137,813 Logic Elements/Cells - Extensive programmable logic capacity enables complex digital designs, signal processing algorithms, and multi-function system integration
• 6,186,598 Total RAM Bits - Ample on-chip memory for buffering, data caching, and memory-intensive applications without external RAM
• 356 I/O Pins - Flexible connectivity options support diverse interfaces including PCIe, Ethernet, USB, LVDS, and custom protocols
• Industrial Temperature Range (0°C to 100°C TJ) - Reliable operation in harsh environments including factory floors, outdoor installations, and automotive applications
• 784-FCBGA Package (23x23mm) - Compact surface mount design optimizes board space while maintaining excellent thermal performance
• RoHS Compliant - Lead-free, environmentally responsible manufacturing meets global regulatory standards
• 0.825V ~ 0.876V Supply Voltage - Low power consumption reduces heat generation and operating costs

Ideal Applications

This versatile FPGA excels in:

• Industrial Automation - PLC controllers, robotics, factory automation systems
• Embedded Vision Systems - Real-time image processing, machine vision, quality inspection
• Motor Control - Advanced servo drives, multi-axis motion control, power electronics
• Communications Infrastructure - Protocol converters, network processors, software-defined radio
• Test & Measurement Equipment - High-speed data acquisition, signal generation, protocol analysis
• High-Performance Computing - Hardware acceleration, parallel processing, custom compute engines

Why Choose AMD Spartan UltraScale+?

AMD's Spartan UltraScale+ architecture combines proven FPGA technology with advanced 16nm FinFET process technology, delivering up to 2x better power efficiency compared to previous generations. The UltraScale+ platform provides exceptional DSP performance, flexible I/O standards support, and seamless integration with AMD's Vivado Design Suite for rapid development.

What's Included

Each XCSU150P-1SBVG784E FPGA is supplied in protective tray packaging, ready for automated pick-and-place assembly. Full technical documentation, datasheets, and design resources are available through AMD's support portal.

Design Support & Resources

Develop faster with AMD Vivado Design Suite, comprehensive IP libraries, reference designs, and active community support. Access application notes, evaluation boards, and technical documentation to accelerate your time-to-market.
