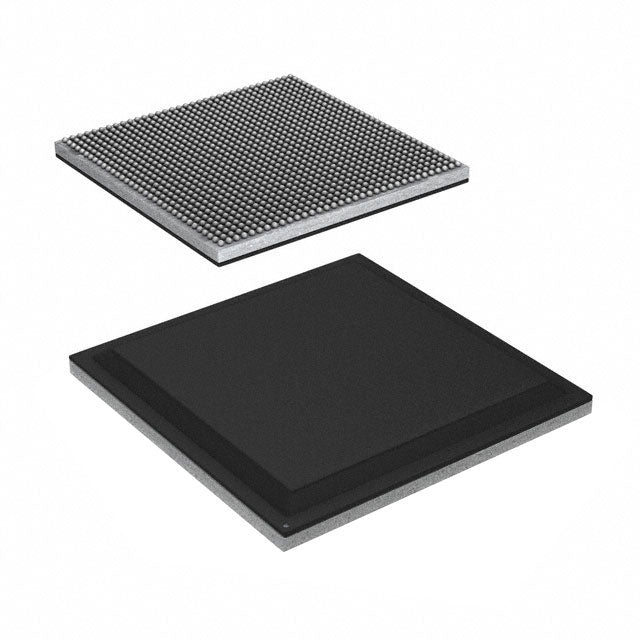

AMD XCZU15EG-L1FFVB1156I

AMD Zynq® UltraScale+™ MPSoC EG - XCZU15EG-L1FFVB1156I

The XCZU15EG-L1FFVB1156I is a high-performance, industrial-grade System-on-Chip (SoC) combining programmable logic with processing power. This device integrates a Quad ARM® Cortex®-A53 MPCore™ application processor, Dual ARM® Cortex™-R5 real-time processors, and ARM Mali™-400 MP2 graphics engine with 747K+ logic cells of FPGA fabric, making it ideal for aerospace, automotive, industrial automation, and telecommunications applications.

Key Features & Benefits

• Heterogeneous Processing: Quad-core ARM Cortex-A53 (up to 1.2GHz) for application processing, dual Cortex-R5 (up to 600MHz) for real-time control, plus Mali-400 MP2 GPU
• Extensive FPGA Resources: 747,000+ logic cells with programmable logic for custom acceleration and I/O interfaces
• Industrial Temperature Range: Qualified for -40°C to +100°C (TJ) operation in harsh environments
• Rich Connectivity: CANbus, Gigabit Ethernet, USB OTG, PCIe, multiple UART/SPI/I²C interfaces, MMC/SD/SDIO
• On-Chip Memory: 256KB on-chip RAM plus DDR4/DDR3L memory controller support
• RoHS Compliant: Environmentally friendly, lead-free package meeting global standards

Target Applications

This MPSoC is engineered for mission-critical systems requiring deterministic real-time performance, hardware acceleration, and long product lifecycles including aerospace flight control, automotive ADAS/infotainment, industrial robotics, 5G wireless infrastructure, medical imaging, and defense systems.

Authentic Sourcing & Documentation

Sourced exclusively from authorized AMD distributors with full traceability. Every unit ships with manufacturer documentation, compliance certificates, and long-term availability commitment for lifecycle-sensitive designs.

• XCZU15EG-L1FFVB1156I.pdf
