AMD XCZU1EG-2SBVA484I

AMD Zynq® UltraScale+™ MPSoC EG - XCZU1EG-2SBVA484I

The XCZU1EG-2SBVA484I is a high-performance System-on-Chip (SoC) from AMD's Zynq UltraScale+ MPSoC EG family, combining multi-core ARM processing with programmable FPGA logic for demanding aerospace, automotive, industrial, medical, and telecommunications applications.

Key Features & Benefits

• Heterogeneous Multi-Core Processing: Quad ARM® Cortex®-A53 MPCore™ (up to 1.333GHz) for application processing, Dual ARM® Cortex™-R5 (up to 600MHz) for real-time control, plus ARM Mali™-400 MP2 GPU for graphics acceleration
• Programmable Logic: Integrated FPGA fabric enables custom hardware acceleration, I/O expansion, and algorithm offloading for maximum performance and flexibility
• Industrial Temperature Range: Qualified for -40°C to 100°C (TJ) operation, ideal for harsh-environment deployments

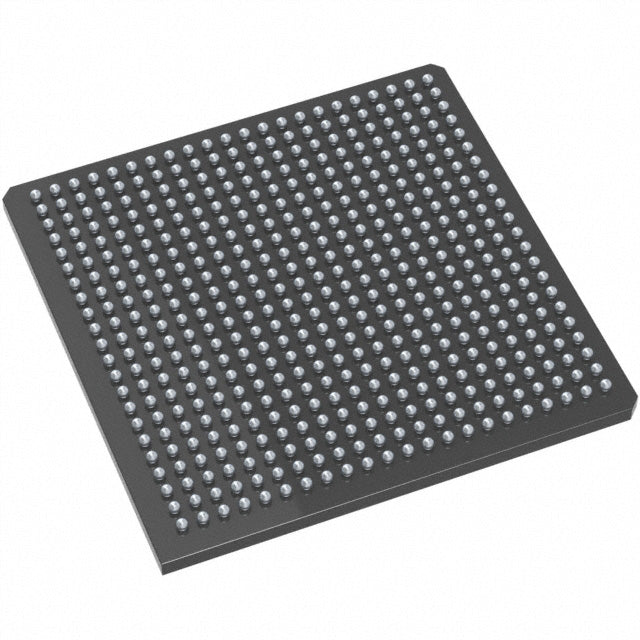

• Compact 484-FCBGA Package: 19x19mm footprint balances I/O density with thermal performance
• 256KB On-Chip RAM: Low-latency memory for critical real-time tasks and data buffering
• Advanced Peripherals: DMA controllers and watchdog timers (WDT) for robust system operation
• RoHS Compliant: Meets environmental and regulatory standards for global deployment

Typical Applications

This MPSoC is engineered for applications requiring deterministic real-time processing, hardware acceleration, and long-term availability, including embedded vision systems, motor control, software-defined radio, test & measurement equipment, and industrial automation.

Design-In Support

Full technical documentation, reference designs, and development tools are available. Contact our engineering team for design consultation, sample requests, and volume pricing.

• XCZU1EG-2SBVA484I.pdf
