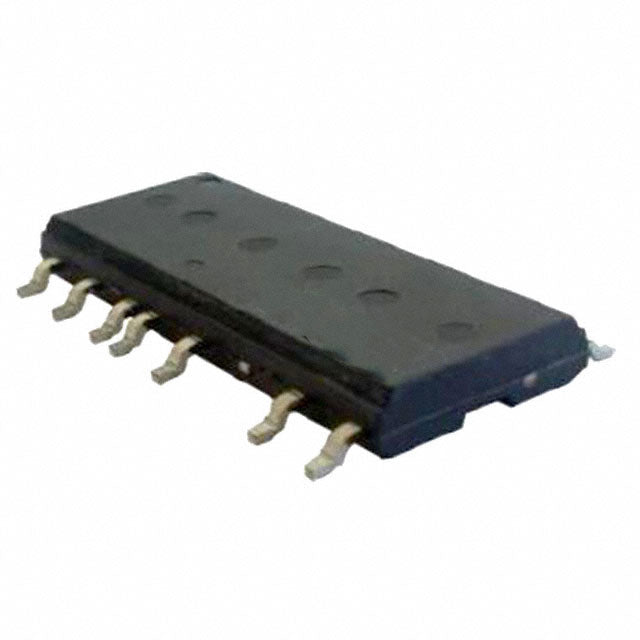

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Infineon Technologies
IRSM505-055PATR
IRSM505-055PATR
Regular price
Dhs. 355,936.92
Regular price
Dhs. 374,670.44
Sale price
Dhs. 355,936.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,936.92 AED | Dhs. 355,936.92 AED |
| 15+ | Dhs. 344,696.80 AED | Dhs. 5,170,452.00 AED |
| 25+ | Dhs. 337,203.40 AED | Dhs. 8,430,085.00 AED |
| 50+ | Dhs. 318,469.87 AED | Dhs. 15,923,493.50 AED |
| 100+ | Dhs. 281,002.83 AED | Dhs. 28,100,283.00 AED |
| N+ | Dhs. 56,200.57 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | µIPM™-DIP |
| Packaging | | |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 1.3Ohm |
| Current - Output / Channel | 2.4A |
| Current - Peak Output | 15A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 23-PowerSMD Module |
| Supplier Device Package | 23-SOP |
| ROHS |  |
Datasheets:
IRSM505-055PATR
.pdf
×
