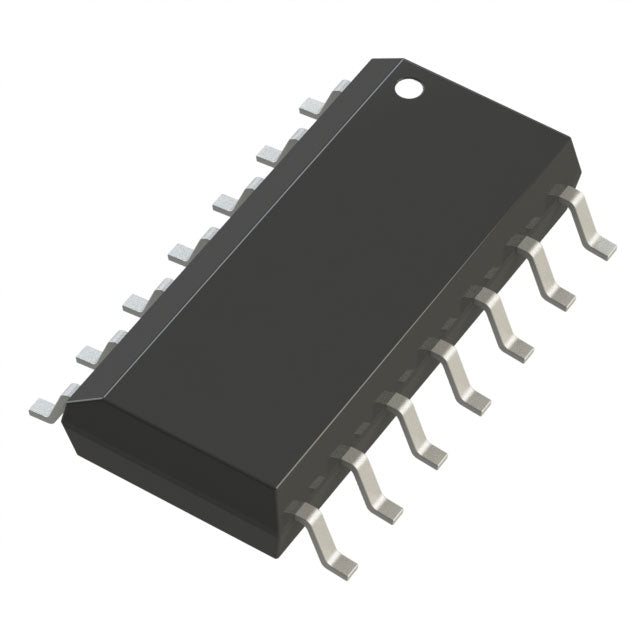

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MAX4535ESD+
MAX4535ESD+
Regular price
Dhs. 355,908.82
Regular price
Dhs. 374,640.86
Sale price
Dhs. 355,908.82
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,908.82 AED | Dhs. 355,908.82 AED |
| 15+ | Dhs. 344,669.59 AED | Dhs. 5,170,043.85 AED |
| 25+ | Dhs. 337,176.77 AED | Dhs. 8,429,419.25 AED |
| 50+ | Dhs. 318,444.73 AED | Dhs. 15,922,236.50 AED |
| 100+ | Dhs. 280,980.65 AED | Dhs. 28,098,065.00 AED |
| N+ | Dhs. 56,196.13 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Factory | Tube |
| Switch Circuit | DPST - NO |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -53dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
Datasheets:
MAX4535ESD+
.pdf
×
