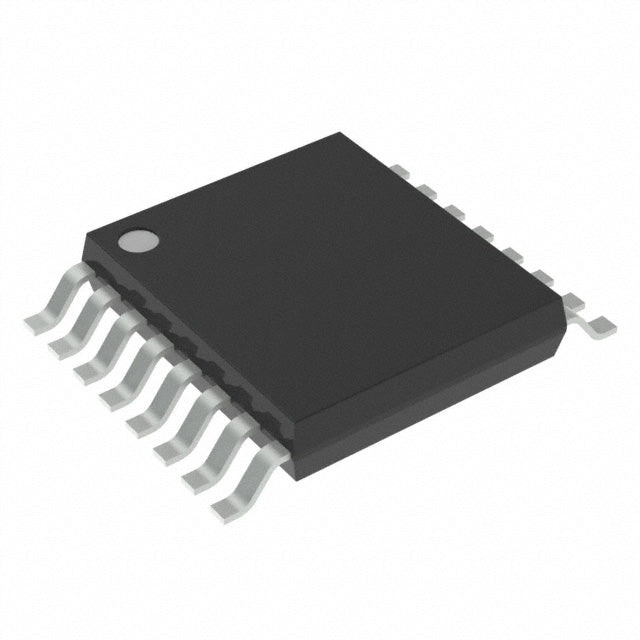

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX1309AQPWRQ1
TMUX1309AQPWRQ1
Regular price
Dhs. 1.12
Regular price
Dhs. 1.20
Sale price
Dhs. 1.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.12 AED | Dhs. 1.12 AED |
| 15+ | Dhs. 1.10 AED | Dhs. 16.50 AED |
| 25+ | Dhs. 1.08 AED | Dhs. 27.00 AED |
| 50+ | Dhs. 1.02 AED | Dhs. 51.00 AED |
| 100+ | Dhs. 0.90 AED | Dhs. 90.00 AED |
| N+ | Dhs. 0.18 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | TMUX13xxA-Q1 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T - Open |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 195Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 1.62V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 34ns, 50ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | -1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA (Typ) |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
Datasheets:
TMUX1309AQPWRQ1
.pdf
×
