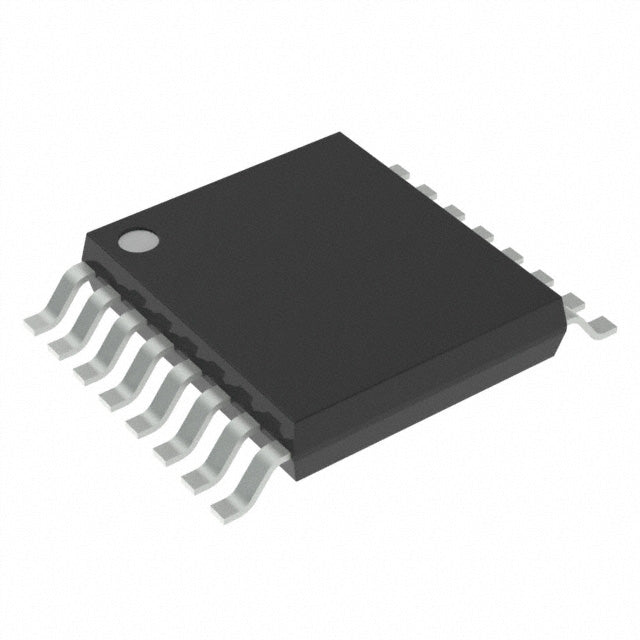

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TMUX6209PWR
TMUX6209PWR
Regular price
Dhs. 20.79
Regular price
Dhs. 21.88
Sale price
Dhs. 20.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 20.79 AED | Dhs. 20.79 AED |
| 15+ | Dhs. 20.13 AED | Dhs. 301.95 AED |
| 25+ | Dhs. 19.69 AED | Dhs. 492.25 AED |
| 50+ | Dhs. 18.60 AED | Dhs. 930.00 AED |
| 100+ | Dhs. 16.41 AED | Dhs. 1,641.00 AED |
| N+ | Dhs. 3.28 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | DP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 6.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 200ns, 290ns |
| -3db Bandwidth | 52MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP (0.173", 4.40mm Width) |
Datasheets:
TMUX6209PWR
.pdf
×
