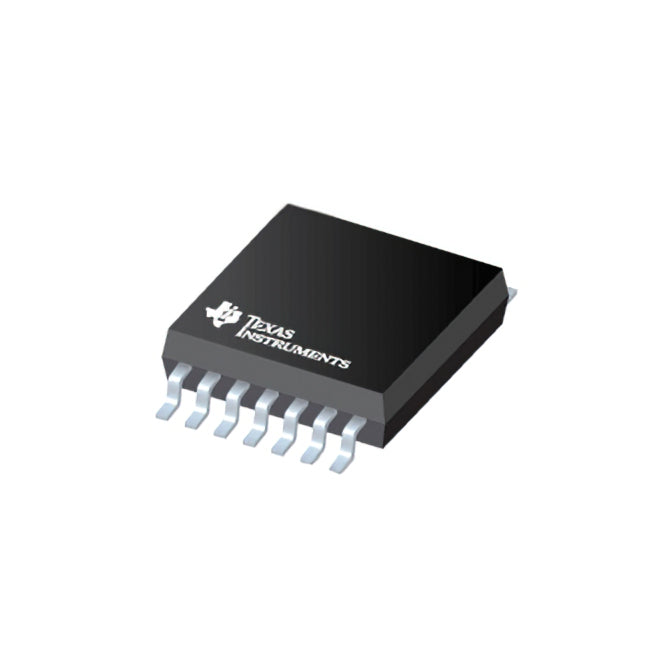

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
TPS1HTC100QPWPRQ1
TPS1HTC100QPWPRQ1
Regular price
Dhs. 7.49
Regular price
Dhs. 7.90
Sale price
Dhs. 7.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.49 AED | Dhs. 7.49 AED |
| 15+ | Dhs. 7.27 AED | Dhs. 109.05 AED |
| 25+ | Dhs. 7.11 AED | Dhs. 177.75 AED |
| 50+ | Dhs. 6.72 AED | Dhs. 336.00 AED |
| 100+ | Dhs. 5.93 AED | Dhs. 593.00 AED |
| N+ | Dhs. 1.19 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 60V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4A |
| Rds On (Typ) | 83mOhm |
| nput Type | Non-Inverting |
| Features | Latch Function, Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Battery, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 14-HTSSOP |
| ROHS |  |
Datasheets:
TPS1HTC100QPWPRQ1
.pdf
×
