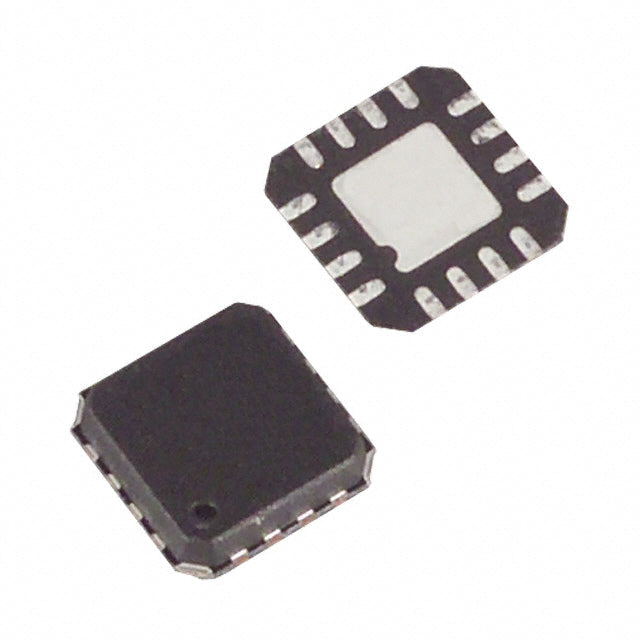

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Union Semiconductor International Limited
UM3699A
UM3699A
Regular price
Dhs. 2.77
Regular price
Dhs. 2.92
Sale price
Dhs. 2.77
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.77 AED | Dhs. 2.77 AED |
| 15+ | Dhs. 2.69 AED | Dhs. 40.35 AED |
| 25+ | Dhs. 2.63 AED | Dhs. 65.75 AED |
| 50+ | Dhs. 2.48 AED | Dhs. 124.00 AED |
| 100+ | Dhs. 2.19 AED | Dhs. 219.00 AED |
| N+ | Dhs. 0.44 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Union Semiconductor International Limited |
| Product Series | UM3699A |
| Packaging | Tape & Reel (TR) | |
| Switch Circuit | DPDT - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 20MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 72pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -62dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| ROHS |  |
Datasheets:
UM3699A
.pdf
×
