10AS032E2F27I2LG

Altera Arria 10 SX FPGA System-on-Chip (SoC)

The 10AS032E2F27I2LG is a high-performance FPGA System-on-Chip from Intel's Arria 10 SX family, combining the flexibility of programmable logic with the processing power of dual ARM Cortex-A9 processors. This advanced device is engineered for demanding embedded applications requiring both FPGA reconfigurability and hard processor performance.

Key Features:

• Dual ARM Cortex-A9 MPCore processors with CoreSight debug technology running at 1.5GHz
• 320,000 logic elements providing extensive FPGA resources for custom logic implementation
• 256KB integrated RAM for efficient data processing
• Rich connectivity options: Ethernet, USB OTG, I2C, SPI, UART/USART, MMC/SD/SDIO, and EBI/EMI interfaces
• Advanced peripherals: DMA, Power-On Reset (POR), and Watchdog Timer (WDT)
• Industrial temperature range: -40°C to 100°C (TJ) for reliable operation in harsh environments

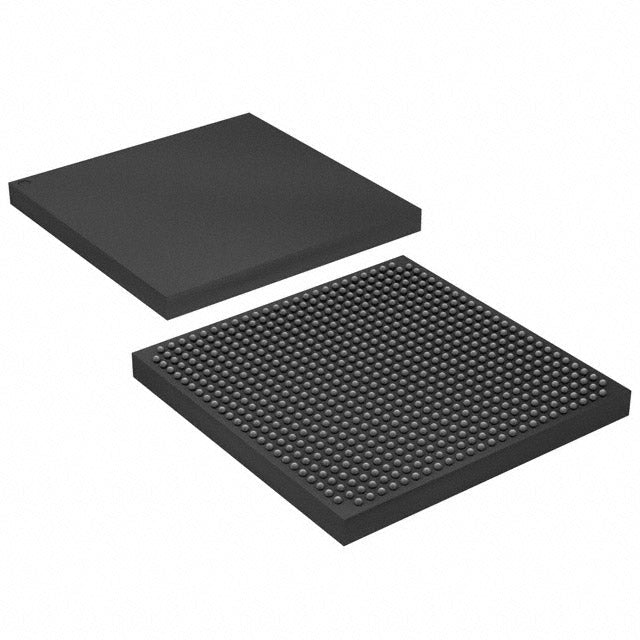

• Compact 672-FBGA package (27x27mm) for space-constrained designs

Ideal Applications:

This SoC is perfect for industrial automation, communications infrastructure, automotive systems, medical devices, and high-speed data processing applications where both programmable logic and processor performance are essential.

Technical Specifications:

All products are genuine, factory-sealed components. Fast worldwide shipping available.
