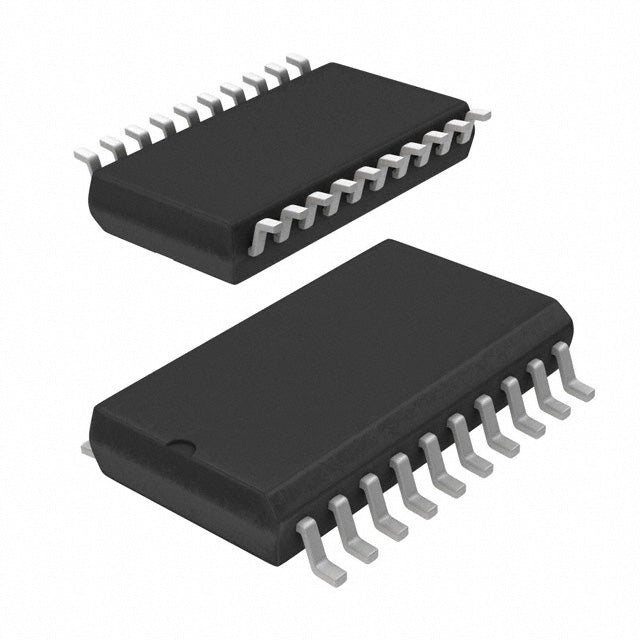

onsemi 74LCX244WM
Prix habituel
$1.81
Prix habituel
$1.90
Prix promotionnel
$1.81
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.81 | $1.81 |
| 15+ | $1.75 | $26.25 |
| 25+ | $1.71 | $42.75 |
| 50+ | $1.62 | $81.00 |
| 100+ | $1.43 | $143.00 |
| N+ | $0.29 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74LCX |
| Conditionnement | Tube | |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 4 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 2V ~ 3,6V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-SOIC (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 20-SOIC |
| RoHS |  |
Base Product Number ：
74LCX244
74LCX244WM.pdf
- Q: What is the logic family of the 74LCX244WM?
- A: It belongs to the 74LCX (Low-Voltage CMOS) family, designed for low-voltage, high-speed applications.
- Q: What is the function of this IC?
- A: It is a dual (2 channels of 4 bits) non-inverting buffer, providing 8 total buffer channels.
- Q: What type of output does it have?
- A: It features 3-State outputs, allowing for connection to a shared bus with high-impedance state when disabled.
- Q: What is the operating voltage range?
- A: The supply voltage range is 2V to 3.6V, making it ideal for low-voltage 3.3V systems.
- Q: What is the output current capability?
- A: It can source and sink 24mA, providing strong drive for low-voltage logic loads.
- Q: What package is available?
- A: It comes in a 20-SOIC (0.295", 7.50mm Width) surface-mount package.
×
