Analog Devices Inc. AD774BTD

  • AD774BTD Analog Devices Inc. Analog Devices Inc. Circuit intégré ADC 12 bits SAR 28CDIP Original Authentic IC Component
1 1

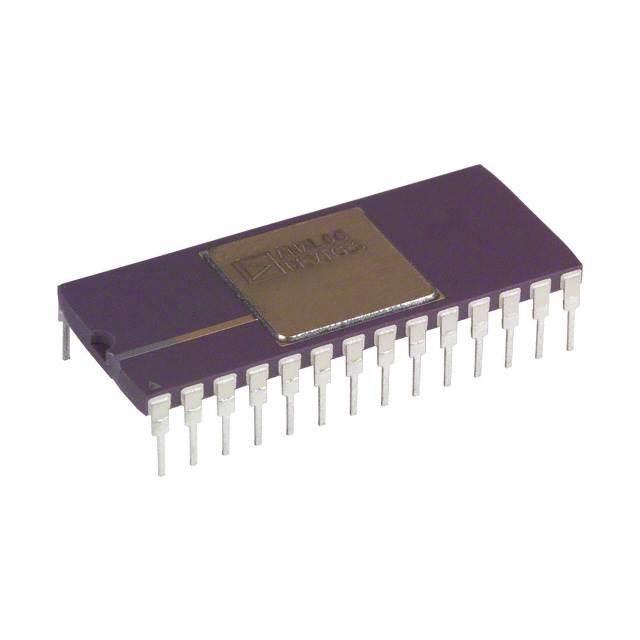

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
$289.37
$304.60 $289.37
Promotion Épuisé
Quantity Unit Price Total Price
1 $289.37 $289.37
15+ $280.23 $4,203.45
25+ $274.14 $6,853.50
50+ $258.91 $12,945.50
100+ $228.45 $22,845.00
N+ $45.69 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Analog Devices Inc.
Gamme de produits
Conditionnement Marché | Tube
Nombre de bits 12
Fréquence d'échantillonnage (par seconde) -
Nombre d'entrées 2
Type d'entrée Extrémité simple
Interface de données Parallèle
Configuration ADC
Rapport S/H:ADC -
Nombre de convertisseurs A/D 1
Architecture SAR
Type de référence Interne
Alimentation en tension analogique ±11,4 V ~ 16,5 V
Tension - Alimentation, Numérique 5V
Caractéristiques -
Température de fonctionnement -40°C ~ 85°C
Type de montage trou traversant
Grade -
Qualification -
Emballage / Étui 28-CDIP (0,600", 15,24 mm)
Emballage du dispositif du fournisseur 28-CDIP
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number ： AD774B
12-bit AD774B ADC Analog-to-Digital Converter CDIP Dual Channel Industrial Parallel Interface
Q: What type of ADC is the AD774BTD?
A: The AD774BTD is a 12-bit Analog-to-Digital Converter (ADC) with a successive approximation architecture.
Q: What is the resolution of the AD774BTD?
A: The AD774BTD provides 12-bit resolution, offering 4096 discrete output levels.
Q: How many input channels does the AD774BTD have?
A: It features 2 input channels for multiplexed signal acquisition.
Q: What interface does the AD774BTD use?
A: It uses a parallel interface for high-speed data transfer to microcontrollers or DSPs.
Q: What is the operating temperature range?
A: The AD774BTD operates over the industrial temperature range of -40°C to +85°C.
Q: What package is the AD774BTD available in?
A: It is available in a 28-pin CDIP (0.600", 15.24mm) ceramic dual-in-line package.
