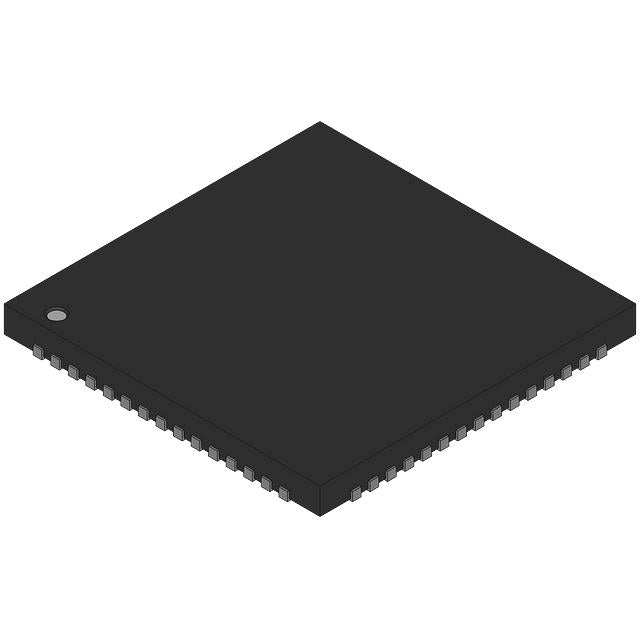

National Semiconductor ADC12DS080CISQ
Prix habituel
$60.64
Prix habituel
$15.16
Prix promotionnel
$60.64
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $60.64 | $60.64 |
| 15+ | $13.95 | $209.25 |
| 25+ | $13.64 | $341.00 |
| 50+ | $12.89 | $644.50 |
| 100+ | $11.37 | $1,137.00 |
| N+ | $2.27 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Semiconducteur national |
| Gamme de produits | ADC12DS080 |
| Conditionnement | En vrac | |
| Nombre de bits | 12 |
| Fréquence d'échantillonnage (par seconde) | 80M |
| Nombre d'entrées | 2 |
| Type d'entrée | Différentiel |
| Interface de données | LVDS - Série |
| Configuration | S/H-ADC |
| Rapport S/H:ADC | 1:1 |
| Nombre de convertisseurs A/D | 2 |
| Architecture | pipeline |
| Type de référence | Externe, Interne |
| Alimentation en tension analogique | 2,7 V ~ 3,6 V |
| Tension - Alimentation, Numérique | 2,7 V ~ 3,6 V |
| Caractéristiques | Échantillonnage simultané |
| Température de fonctionnement | -40°C ~ 85°C |
| Type de montage | Montage en surface |
| Grade | - |
| Qualification | - |
| Emballage / Étui | Plaque exposée 60-WFQFN |
| Emballage du dispositif du fournisseur | 60-WQFN (9x9) |
Base Product Number ：
ADC12DS080
ADC12DS080CISQ.pdf
- Q: What is the resolution of the ADC12DS080CISQ?
- A: The ADC12DS080CISQ is a 12-bit analog-to-digital converter, offering 4096 discrete levels for signal representation.
- Q: What is the sampling rate of the ADC12DS080CISQ?
- A: It supports a high sampling rate of 80M SPS (80 million samples per second), suitable for high-frequency applications.
- Q: How many channels does the ADC12DS080CISQ have?
- A: This device features 2 input channels, enabling simultaneous sampling of two analog signals.
- Q: What digital interface does the ADC12DS080CISQ use?
- A: It uses an LVDS (Low-Voltage Differential Signaling) serial interface, which provides high-speed data transfer with low noise.
- Q: What is the architecture of the ADC12DS080CISQ?
- A: The architecture is S/H-ADC (sample-and-hold), ensuring accurate capture of fast analog waveforms.
- Q: What is the operating temperature range?
- A: The ADC12DS080CISQ operates from -40°C to 85°C, making it suitable for industrial and automotive environments.
×
