CS4344-DZZR

CS4344-DZZR - High-Performance 24-Bit Audio DAC

The CS4344-DZZR from Cirrus Logic's Popguard® series is a premium 24-bit digital-to-analog converter designed for professional audio applications requiring exceptional sound quality and reliability. With a 192kHz sampling rate and SPI data interface, this audio DAC delivers crystal-clear signal conversion for demanding audio systems.

Key Features & Benefits

• 24-bit resolution ensures superior audio fidelity and dynamic range
• 192kHz sampling rate supports high-resolution audio formats
• SPI interface provides flexible digital connectivity
• Wide operating temperature range (-40°C to 85°C) for industrial and automotive applications
• Compact TSSOP-10 surface mount package saves board space
• Single supply operation (3V-3.47V or 5V) simplifies power design
• RoHS compliant meets environmental standards

Applications

Ideal for professional audio equipment, automotive infotainment systems, consumer electronics, industrial control panels, and embedded audio solutions requiring long lifecycle support and full traceability.

Complete Technical Specifications

Product attributes	Property Value
Manufacturer	Cirrus Logic Inc.
Product Series	Popguard®
Packaging	Tape & Reel (TR) |
Type	DAC, Audio
Number of Channels	1
Resolution (Bits)	24 b
Sampling Rate (Per Second)	192k
Data Interface	SPI
Voltage Supply Source	Single Supply
Voltage - Supply	3V ~ 3.47V, 5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Grade	-
Qualification	-

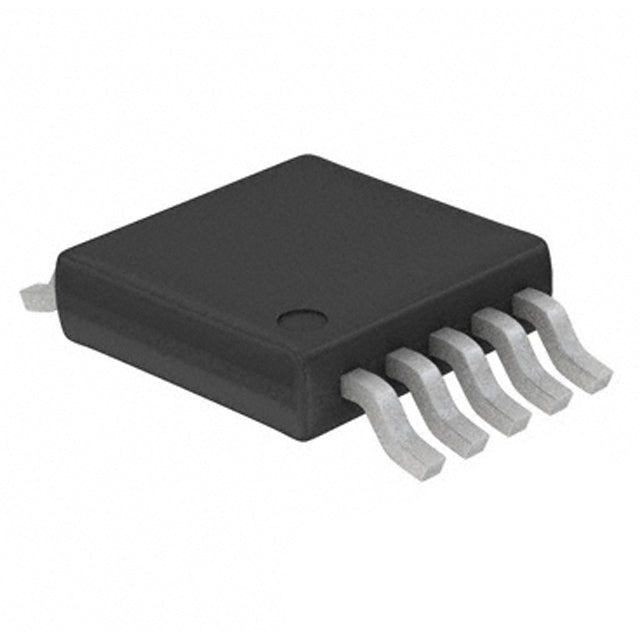

Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-TSSOP
ROHS

All specifications are maintained from the manufacturer's datasheet to ensure accuracy and traceability for design-in reference.
