CS5344-CZZR

CS5344-CZZR - 24-Bit Stereo Audio ADC Converter

The CS5344-CZZR from Cirrus Logic is a high-performance 24-bit stereo analog-to-digital converter (ADC) designed for professional audio applications. With a 96 kHz sampling rate and 2-channel serial data interface, this ADC delivers exceptional audio fidelity for recording, broadcast, and industrial audio systems.

Key Features

• 24-bit resolution for superior audio quality and dynamic range
• 96 kHz sampling rate supports high-resolution audio capture
• Dual-channel stereo operation with serial data interface
• Flexible power supply: 3.1V to 3.5V or 4.75V to 5.25V single supply
• Industrial temperature range: -40°C to 85°C for reliable operation
• Compact 10-TSSOP surface mount package for space-efficient designs

Applications

Ideal for professional audio recording equipment, digital mixing consoles, automotive audio systems, telecommunications, and industrial audio processing applications requiring high-fidelity analog-to-digital conversion.

Authorized Distributor Benefits

We provide 100% authentic Cirrus Logic components with full manufacturer documentation, traceability certificates, and long lifecycle support. Our global logistics network ensures fast delivery with proper handling for sensitive semiconductor components.

Technical Specifications

Product attributes	Property Value
Manufacturer	Cirrus Logic Inc.
Product Series
Packaging	|
Type	ADC, Audio
Number of Channels	2
Resolution (Bits)	24 b
Sampling Rate (Per Second)	96k
Data Interface	Serial
Voltage Supply Source	Single Supply
Voltage - Supply	3.1V ~ 3.5V, 4.75V ~ 5.25V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Grade	-
Qualification	-

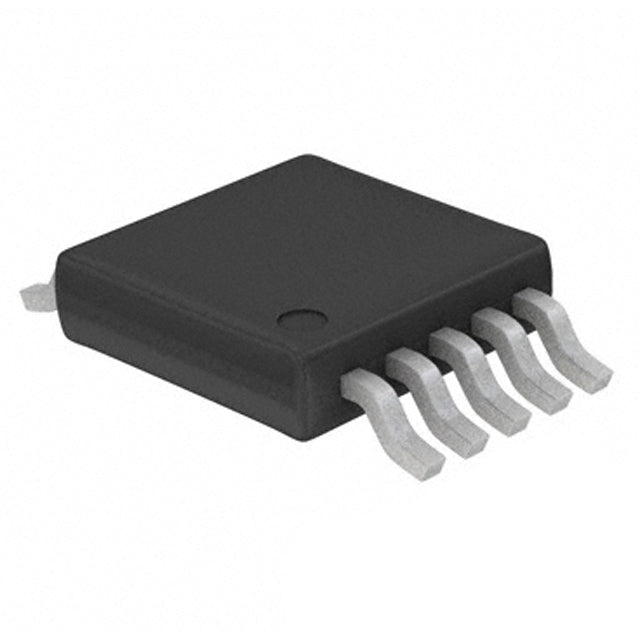

Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-TSSOP
ROHS
