STMicroelectronics L78L05ABZ-AP
Prix habituel
$0.54
Prix habituel
$0.13
Prix promotionnel
$0.54
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.54 | $0.54 |
| 15+ | $0.12 | $1.80 |
| 25+ | $0.12 | $3.00 |
| 50+ | $0.11 | $5.50 |
| 100+ | $0.10 | $10.00 |
| N+ | $0.02 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | STMicroelectronics |
| Gamme de produits | |
| Conditionnement | Ruban adhésif et boîte (TB) | Ruban adhésif coupé (CT) |
| Configuration de sortie | Positif |
| Type de sortie | Fixé |
| Nombre de régulateurs | 1 |
| Tension d'entrée (max.) | 30V |
| Tension - Sortie (Min/Fixe) | 5V |
| Tension - Sortie (Max) | - |
| Chute de tension (max.) | - |
| Courant - Sortie | 100 mA |
| Courant - Quiescent (Iq) | 5,5 mA |
| Courant - Alimentation (Max) | 6 mA |
| PSRR | 49 dB (120 Hz) |
| Fonctions de contrôle | - |
| Caractéristiques de protection | Surintensité, surchauffe, court-circuit |
| Température de fonctionnement | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Type de montage | trou traversant |

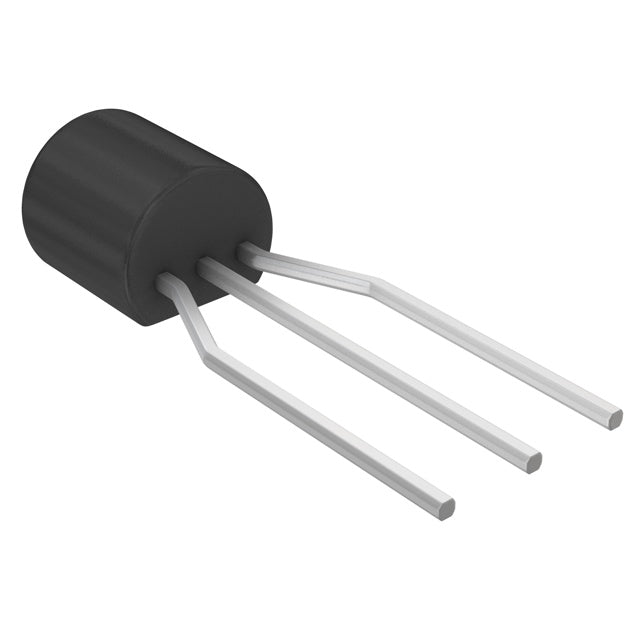

| Emballage / Étui | Broches formées TO-226-3, TO-92-3 (TO-226AA) |
| Emballage du dispositif du fournisseur | TO-92-3 |
| RoHS |  |
Base Product Number ：
L78L05ABZ
L78L05ABZ-AP.pdf
- Q: What is the output voltage of the L78L05ABZ-AP?
- A: This regulator provides a fixed 5V output, a standard logic and microcontroller supply voltage.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA, suitable for low-power circuits and reference supplies.
- Q: What is the input voltage range?
- A: The input voltage is 5V; however, the L78L05 typically accepts 7V to 20V input. Verify the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 5.5 mA, which is typical for this family of regulators.
- Q: What is the PSRR?
- A: The PSRR is 49dB at 120Hz, providing moderate ripple rejection for basic filtering.
- Q: What package is available?
- A: It comes in the TO-92-3 package, a classic through-hole package for easy prototyping.
×
