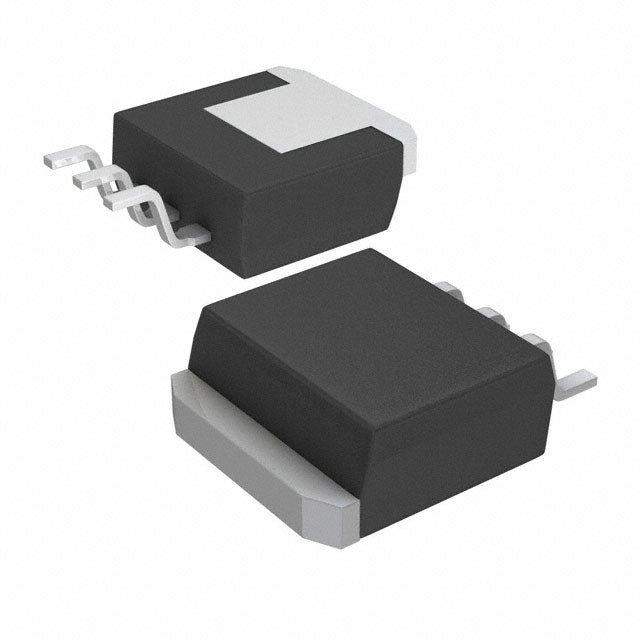

Texas Instruments LM2940CSX-5.0/NOPB
Prix habituel
$1.93
Prix habituel
$2.03
Prix promotionnel
$1.93
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.93 | $1.93 |
| 15+ | $1.87 | $28.05 |
| 25+ | $1.83 | $45.75 |
| 50+ | $1.73 | $86.50 |
| 100+ | $1.52 | $152.00 |
| N+ | $0.30 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| Configuration de sortie | Positif |
| Type de sortie | Fixé |
| Nombre de régulateurs | 1 |
| Tension d'entrée (max.) | 26V |
| Tension - Sortie (Min/Fixe) | 5V |
| Tension - Sortie (Max) | - |
| Chute de tension (max.) | 0,8 V à 1 A |
| Courant - Sortie | 1A |
| Courant - Quiescent (Iq) | 10 mA |
| Courant - Alimentation (Max) | 15 mA |
| PSRR | 64 dB (120 Hz) |
| Fonctions de contrôle | - |
| Caractéristiques de protection | Surintensité, surchauffe, inversion de polarité, court-circuit |
| Température de fonctionnement | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | TO-263-4, D2PAK (3 broches + languette), TO-263AA |
| Emballage du dispositif du fournisseur | TO-263 (DDPAK-3) |
| RoHS |  |
Base Product Number ：
LM2940CSX-5.0
LM2940CSX-5.0/NOPB.pdf
- Q: What is the output voltage of the LM2940CSX-5.0/NOPB?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.8V at 1A load, allowing operation with a moderate input-to-output differential.
- Q: What is the quiescent current?
- A: The quiescent current is 10 mA, which is higher than some newer LDOs but acceptable for higher-current applications.
- Q: What package is this LDO available in?
- A: It comes in the TO-263 (DDPAK-3) surface-mount package, suitable for power dissipation.
×
