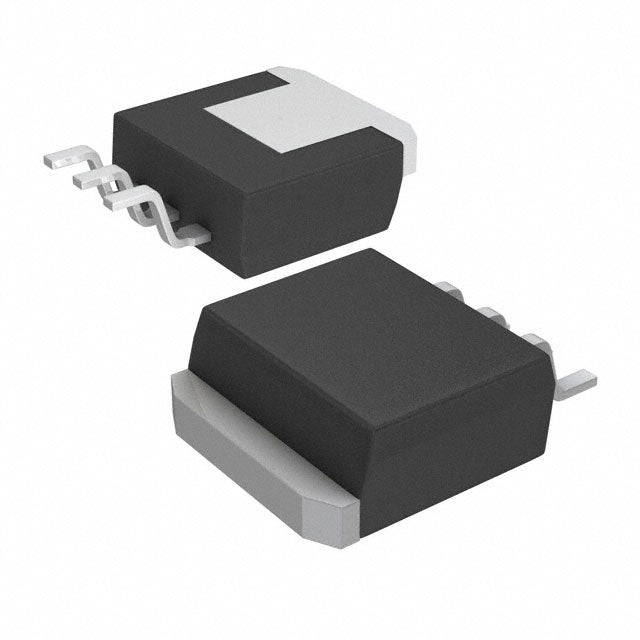

Texas Instruments LM2940S-5.0/NOPB
Prix habituel
$2.34
Prix habituel
$2.46
Prix promotionnel
$2.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.34 | $2.34 |
| 15+ | $2.26 | $33.90 |
| 25+ | $2.21 | $55.25 |
| 50+ | $2.09 | $104.50 |
| 100+ | $1.85 | $185.00 |
| N+ | $0.37 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | |
| Conditionnement | Tube | |
| Configuration de sortie | Positif |
| Type de sortie | Fixé |
| Nombre de régulateurs | 1 |
| Tension d'entrée (max.) | 26V |
| Tension - Sortie (Min/Fixe) | 5V |
| Tension - Sortie (Max) | - |
| Chute de tension (max.) | 1V à 1A |
| Courant - Sortie | 1A |
| Courant - Quiescent (Iq) | 10 mA |
| Courant - Alimentation (Max) | 15 mA |
| PSRR | 64 dB (120 Hz) |
| Fonctions de contrôle | - |
| Caractéristiques de protection | Surintensité, surchauffe, inversion de polarité, court-circuit |
| Température de fonctionnement | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | TO-263-4, D2PAK (3 broches + languette), TO-263AA |
| Emballage du dispositif du fournisseur | TO-263 (DDPAK-3) |
| RoHS |  |
Base Product Number ：
LM2940
LM2940S-5.0/NOPB.pdf
- Q: What is the fixed output voltage of the LM2940S-5.0?
- A: This LDO provides a fixed 5V output, ideal for standard logic and microcontroller supplies.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of output current for a wide range of applications.
- Q: What is the input voltage range?
- A: The input voltage can range from 5V up to 26V, providing flexibility for various power rails.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 1V at a 1A load, allowing operation with a 6V input for a 5V output.
- Q: What is the quiescent current?
- A: The quiescent current is typically 10 mA, which is acceptable for many automotive and industrial applications.
- Q: What package is available?
- A: It comes in a TO-263 (DDPAK-3) package, suitable for surface-mount designs with good thermal performance.
×
