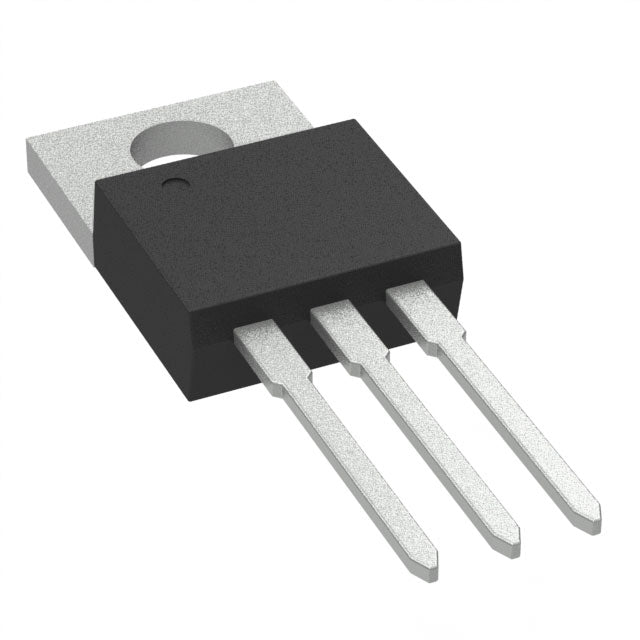

Texas Instruments LM317AT/NOPB
Prix habituel
$1.93
Prix habituel
$2.03
Prix promotionnel
$1.93
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.93 | $1.93 |
| 15+ | $1.87 | $28.05 |
| 25+ | $1.83 | $45.75 |
| 50+ | $1.73 | $86.50 |
| 100+ | $1.52 | $152.00 |
| N+ | $0.30 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | |
| Conditionnement | Tube | |
| Configuration de sortie | Positif |
| Type de sortie | Réglable |
| Nombre de régulateurs | 1 |
| Tension d'entrée (max.) | 40V |
| Tension - Sortie (Min/Fixe) | 1,25 V |
| Tension - Sortie (Max) | 37V |
| Chute de tension (max.) | - |
| Courant - Sortie | 1,5 A |
| Courant - Quiescent (Iq) | 10 mA |
| Courant - Alimentation (Max) | - |
| PSRR | 80 dB ~ 65 dB (120 Hz) |
| Fonctions de contrôle | - |
| Caractéristiques de protection | Surintensité, surchauffe, court-circuit |
| Température de fonctionnement | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Type de montage | trou traversant |
| Emballage / Étui | TO-220-3 |
| Emballage du dispositif du fournisseur | TO-220-3 |
| RoHS |  |
Base Product Number ：
LM317AT
LM317AT/NOPB.pdf
- Q: What is the output voltage range of the LM317AT/NOPB?
- A: The LM317AT is an adjustable regulator with an output voltage range from 1.25V up to 37V.
- Q: What is the maximum output current?
- A: It can deliver up to 1.5A of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly specified in the provided data; the output can be set from 1.25V to 37V, so input must be higher than the desired output plus dropout.
- Q: What is the dropout voltage?
- A: The dropout voltage is not directly specified, but typical values are around 2V at full load; refer to the datasheet for details.
- Q: What is the quiescent current?
- A: The quiescent current is approximately 10 mA.
- Q: What package is available?
- A: It is available in the TO-220-3 package, suitable for heatsinking.
×
