Analog Devices Inc. LTC2309CUF#PBF
Prix habituel
$9.87
Prix habituel
$10.39
Prix promotionnel
$9.87
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.87 | $9.87 |
| 15+ | $9.56 | $143.40 |
| 25+ | $9.35 | $233.75 |
| 50+ | $8.83 | $441.50 |
| 100+ | $7.79 | $779.00 |
| N+ | $1.56 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Analog Devices Inc. |
| Gamme de produits | |
| Conditionnement | Tube | |
| Nombre de bits | 12 |
| Fréquence d'échantillonnage (par seconde) | 14k |
| Nombre d'entrées | 8 |
| Type d'entrée | Différentiel, à extrémité unique |
| Interface de données | I2C |
| Configuration | MUX-S/H-ADC |
| Rapport S/H:ADC | 1:1 |
| Nombre de convertisseurs A/D | 1 |
| Architecture | SAR |
| Type de référence | Externe, Interne |
| Alimentation en tension analogique | 5V |
| Tension - Alimentation, Numérique | 5V |
| Caractéristiques | Adresse sélectionnable |
| Température de fonctionnement | 0°C ~ 70°C |
| Type de montage | Montage en surface |
| Grade | - |
| Qualification | - |

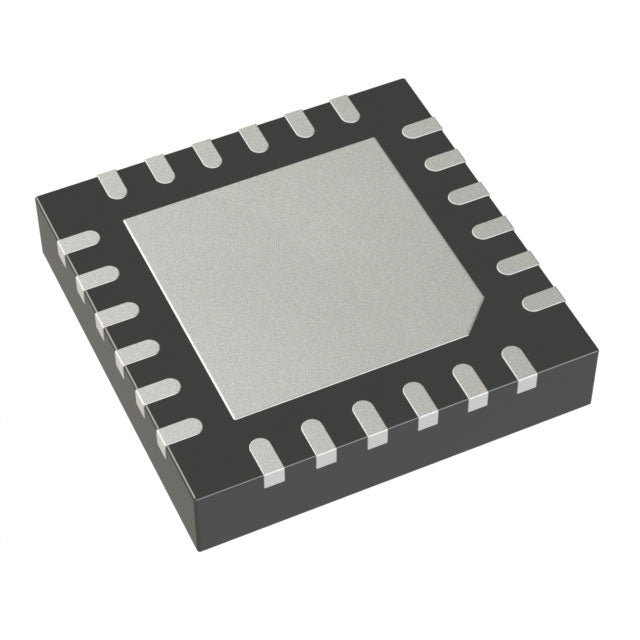

| Emballage / Étui | Coussinet exposé 24-WFQFN |
| Emballage du dispositif du fournisseur | 24-QFN (4x4) |
| RoHS |  |
Base Product Number ：
LTC2309
LTC2309CUF#PBF.pdf
- Q: What is the LTC2309CUF#PBF?
- A: It is a 12-bit, 8-channel analog-to-digital converter with an I2C interface, featuring a multiplexer and sample-and-hold circuit.
- Q: What is the resolution of the LTC2309CUF#PBF?
- A: It provides 12-bit resolution, offering 4096 levels of digital output for accurate analog-to-digital conversion.
- Q: What is the sampling rate?
- A: The maximum sampling rate is 14k SPS, suitable for low-speed, high-precision measurement applications.
- Q: How many channels does it have?
- A: It has 8 multiplexed input channels, allowing multiple analog signals to be read using a single ADC.
- Q: What interface does it use?
- A: It uses the I2C serial interface, which requires only two wires for communication, saving GPIO pins on the host controller.
- Q: What is the package type?
- A: It is available in a 24-WFQFN Exposed Pad package, which offers excellent thermal performance and a small footprint.
×
