Analog Devices Inc. LTC3548AEMSE#PBF

Passer aux informations produits
1 de 1

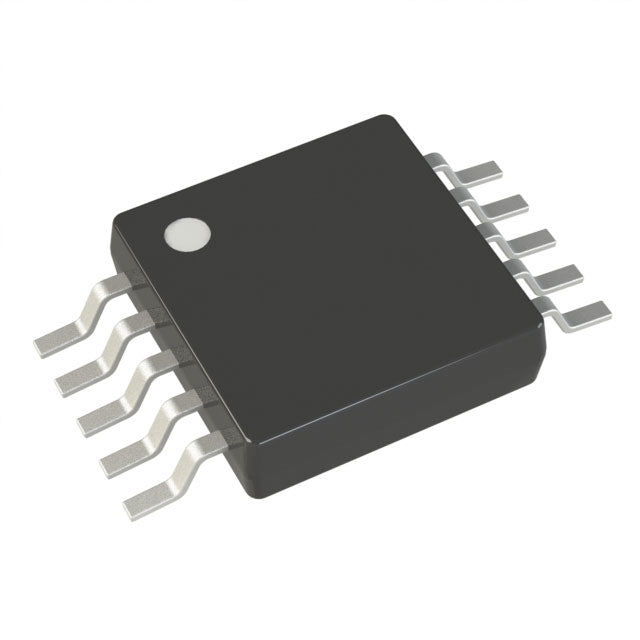

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Prix habituel $7.10
Prix habituel $7.47 Prix promotionnel $7.10
Promotion Épuisé
Quantity Unit Price Total Price
1 $7.10 $7.10
15+ $6.87 $103.05
25+ $6.72 $168.00
50+ $6.35 $317.50
100+ $5.60 $560.00
N+ $1.12 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Quantité
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Analog Devices Inc.
Gamme de produits
Conditionnement Tube |
Fonction Descente, montée/descente
Configuration de sortie Positif
Topologie Buck, Buck-Boost
Type de sortie Réglable
Nombre de sorties 2
Tension d'entrée (Min) 2,5 V
Tension d'entrée (max.) 5,5 V
Tension - Sortie (Min/Fixe) 0,6 V
Tension - Sortie (Max) 5V
Courant - Sortie 400 mA, 800 mA
Commutation de fréquence 2,25 MHz
Redresseur synchrone Oui
Température de fonctionnement -40°C ~ 125°C (TJ)
Grade -
Qualification -
Type de montage Montage en surface
Emballage / Étui 10-TFSOP, 10-MSOP (0,118", largeur 3,00 mm) Pastille exposée
Emballage du dispositif du fournisseur 10-MSOP-EP
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number : LTC3548AEMSE
2.25MHz 2.5V to 5.5V 400mA 800mA Buck Buck-Boost DC-DC Converter Dual Channel MSOP-10 Portable
Q: What type of converter is the LTC3548AEMSE#PBF?
A: It is a dual-channel regulator with two independent converters that can be configured as Buck or Buck-Boost converters.
Q: What is the input voltage range?
A: The input voltage range is from 2.5V to 5.5V, making it ideal for battery-powered and low-voltage systems.
Q: What is the maximum output current?
A: The two channels provide a maximum output current of 400mA and 800mA, respectively.
Q: What is the switching frequency?
A: It operates at a high fixed frequency of 2.25MHz, allowing for the use of tiny, low-profile external components.
Q: What package is this device available in?
A: It is available in a compact 10-lead MSOP package with an exposed pad for improved thermal performance.
