M2S100-FC1152

Microsemi M2S100-FC1152 SmartFusion2 SoC FPGA

The M2S100-FC1152 is a high-performance System-on-Chip (SoC) from Microsemi's SmartFusion2 family, integrating an ARM Cortex-M3 microcontroller with a 100,000 logic module FPGA fabric. This powerful combination delivers exceptional flexibility for embedded applications requiring both processing power and programmable logic.

Key Features

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 100K logic module FPGA
• Memory: 512KB Flash and 64KB RAM for robust application development
• High-Speed Interfaces: DDR, PCIe, and SERDES support for demanding connectivity requirements
• Rich Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
• Industrial Temperature Range: Operates reliably from 0°C to 85°C (TJ)

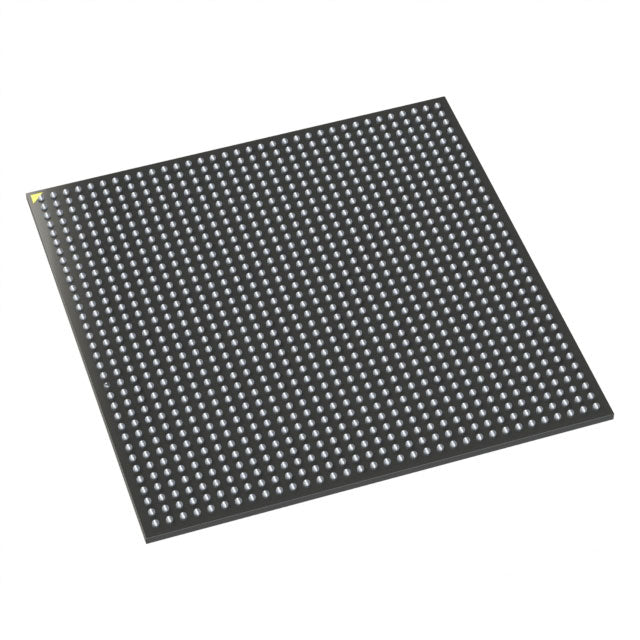

• Compact Package: 1152-FCBGA (35x35mm) for space-constrained designs

Applications

Ideal for industrial automation, automotive systems, aerospace applications, communications infrastructure, and embedded systems requiring secure, low-power processing with FPGA flexibility.

Complete Technical Specifications
