Analog Devices Inc./Maxim Integrated MAX1090BEEI+

  • MAX1090BEEI+ Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Circuit intégré ADC 10 bits SAR 28QSOP Original Authentic IC Component
1 1

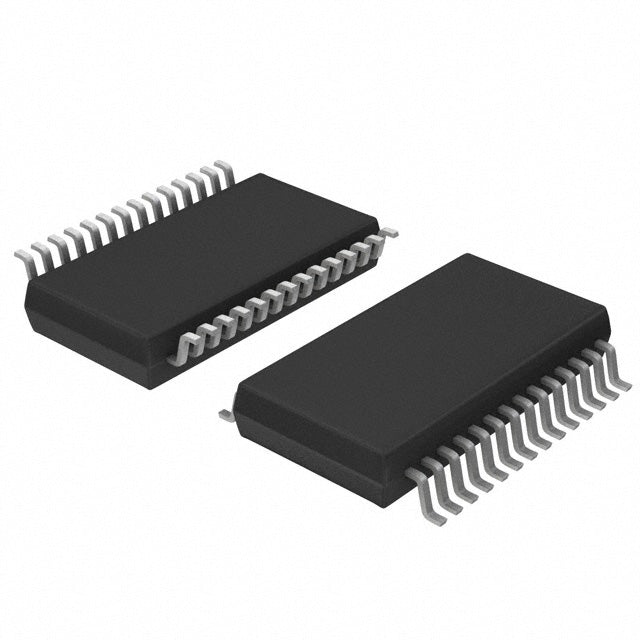

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
$43.37
$10.84 $43.37
Promotion Épuisé
Quantity Unit Price Total Price
1 $43.37 $43.37
15+ $9.97 $149.55
25+ $9.76 $244.00
50+ $9.21 $460.50
100+ $8.13 $813.00
N+ $1.63 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Analog Devices Inc./Maxim Integrated
Gamme de produits
Conditionnement Usine | Tube
Nombre de bits 10
Fréquence d'échantillonnage (par seconde) 400k
Nombre d'entrées 4, 8
Type d'entrée Pseudo-différentiel, à extrémité unique
Interface de données Parallèle
Configuration MUX-S/H-ADC
Rapport S/H:ADC 1:1
Nombre de convertisseurs A/D 1
Architecture SAR
Type de référence Externe, Interne
Alimentation en tension analogique 5V
Tension - Alimentation, Numérique 2,7 V ~ 5,5 V
Caractéristiques -
Température de fonctionnement -40°C ~ 85°C
Type de montage Montage en surface
Grade -
Qualification -
Emballage / Étui 28-SSOP (0,154", largeur 3,90 mm)
Emballage du dispositif du fournisseur 28-QSOP
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number ： MAX1090
10-bit 400k SPS 8-Channel ADC Analog-to-Digital Converter Data Acquisition Industrial MUX-S/H Parallel Interface SSOP-28
Q: What type of ADC is the MAX1090BEEI+?
A: The MAX1090BEEI+ is a 10-bit, multichannel analog-to-digital converter with a MUX-S/H-ADC architecture, featuring a built-in track-and-hold circuit.
Q: What is the resolution of the MAX1090BEEI+?
A: The MAX1090BEEI+ provides 10-bit resolution, offering 1024 discrete output levels for precise signal digitization.
Q: What is the maximum sampling rate of the MAX1090BEEI+?
A: The MAX1090BEEI+ achieves a maximum sampling rate of 400k SPS (samples per second), suitable for moderate-speed data acquisition.
Q: How many input channels does the MAX1090BEEI+ support?
A: This ADC supports either 4 or 8 input channels, configurable via the parallel interface for flexible multiplexed signal acquisition.
Q: What interface does the MAX1090BEEI+ use?
A: It uses a parallel interface for high-speed data transfer to microcontrollers or DSPs.
Q: What is the package type of the MAX1090BEEI+?
A: The device is available in a 28-pin SSOP package (0.154", 3.90mm width), suitable for compact PCB layouts.
