Analog Devices Inc./Maxim Integrated MAX1293BCEG

  • MAX1293BCEG+ Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Circuit intégré ADC 12 bits SAR 24QSOP Original Authentic IC Component
1 1

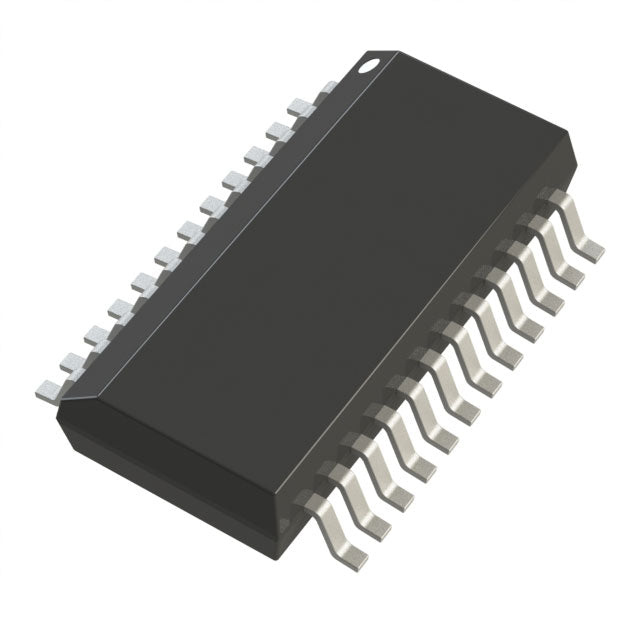

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
$58.00
$9.18 $58.00
Promotion Épuisé
Quantity Unit Price Total Price
1 $58.00 $58.00
15+ $8.45 $126.75
25+ $8.26 $206.50
50+ $7.80 $390.00
100+ $6.89 $689.00
N+ $1.38 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant Analog Devices Inc./Maxim Integrated
Gamme de produits
Conditionnement Tube |
Nombre de bits 12
Fréquence d'échantillonnage (par seconde) 250k
Nombre d'entrées 2, 4
Type d'entrée Pseudo-différentiel, à extrémité unique
Interface de données Parallèle
Configuration MUX-S/H-ADC
Rapport S/H:ADC 1:1
Nombre de convertisseurs A/D 1
Architecture SAR
Type de référence Externe, Interne
Alimentation en tension analogique 2,7 V ~ 3,6 V
Tension - Alimentation, Numérique 1,8 V ~ 3,6 V
Caractéristiques -
Température de fonctionnement 0°C ~ 70°C
Type de montage Montage en surface
Grade -
Qualification -
Emballage / Étui 24-SSOP (0,154", largeur 3,90 mm)
Emballage du dispositif du fournisseur 24-QSOP
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number ： MAX1293BCEG
12-bit 250 kSPS 4-channel ADC Analog-to-Digital Converter Data Acquisition MAX1293 Maxim Integrated MUX-S/H Parallel
Q: What is the MAX1293BCEG+?
A: It is a 12-bit analog-to-digital converter with a multiplexed sample-and-hold (MUX-S/H) architecture.
Q: What is its resolution?
A: It offers 12-bit resolution, providing good accuracy for industrial and instrumentation applications.
Q: What is the sampling rate?
A: It has a maximum sampling rate of 250 kSPS (kilo samples per second).
Q: How many channels does it have?
A: It supports 2 or 4 input channels, configurable for different system needs.
Q: What interface does it use?
A: It uses a parallel interface for high-speed data transfer to microprocessors.
Q: What is the package type?
A: It is available in a 24-SSOP (0.154", 3.90mm Width) package.
