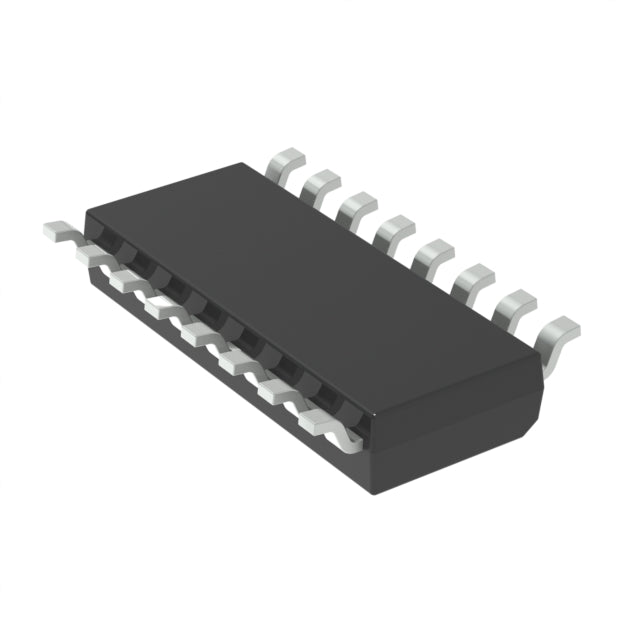

onsemi MC14503BDR2G
Prix habituel
$1.23
Prix habituel
$1.29
Prix promotionnel
$1.23
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.23 | $1.23 |
| 15+ | $1.19 | $17.85 |
| 25+ | $1.16 | $29.00 |
| 50+ | $1.10 | $55.00 |
| 100+ | $0.97 | $97.00 |
| N+ | $0.19 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 4000B |
| Conditionnement | Usine | Ruban découpé (CT) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 2, 4 (Hex) |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 14,1 mA, 25 mA |
| Tension - Alimentation | 3V ~ 18V |
| Température de fonctionnement | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 16-SOIC (0,154", 3,90 mm de largeur) |
| Emballage du dispositif du fournisseur | 16-SOIC |
| RoHS |  |
Base Product Number ：
MC14503B
MC14503BDR2G.pdf
- Q: What is the logic family of the MC14503BDR2G?
- A: It belongs to the 4000B series, known for wide voltage operation and low power consumption.
- Q: What is the function of this IC?
- A: It is a dual non-inverting buffer with 3-state outputs, ideal for bus driving and signal isolation.
- Q: How many channels does it have?
- A: It contains 2 independent buffer channels.
- Q: What is the output type?
- A: The outputs are 3-State, allowing connection to shared buses with high-impedance control.
- Q: What is the operating voltage range?
- A: It operates from 3V to 18V, making it versatile for various supply levels.
- Q: What package is available?
- A: It comes in a 16-SOIC (0.154", 3.90mm Width) package.
×
