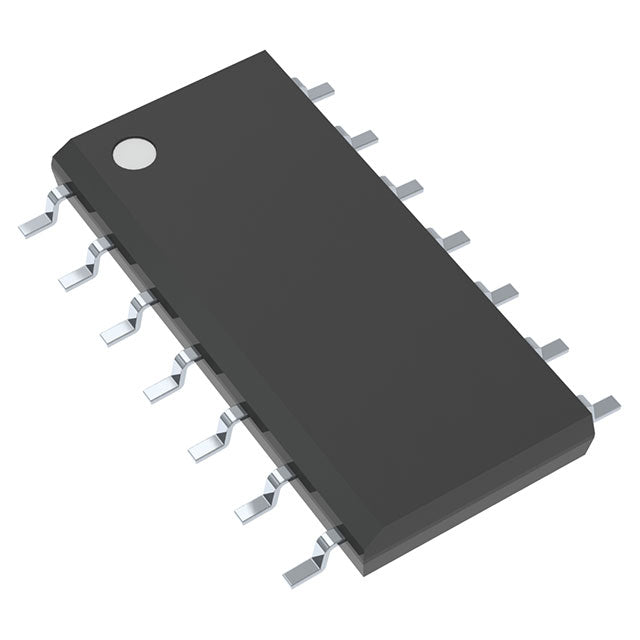

onsemi MC74ACT125DR2G
Prix habituel
$0.74
Prix habituel
$0.78
Prix promotionnel
$0.74
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.74 | $0.74 |
| 15+ | $0.72 | $10.80 |
| 25+ | $0.70 | $17.50 |
| 50+ | $0.66 | $33.00 |
| 100+ | $0.59 | $59.00 |
| N+ | $0.12 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74ACT |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 4 |
| Nombre de bits par élément | 1 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 4,5 V ~ 5,5 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 14-SOIC (0,154", 3,90 mm de largeur) |
| Emballage du dispositif du fournisseur | 14-SOIC |
| RoHS |  |
Base Product Number ：
MC74ACT125
MC74ACT125DR2G.pdf
- Q: What logic family is the MC74ACT125DR2G?
- A: It belongs to the 74ACT family, which combines advanced CMOS technology with TTL-compatible inputs.
- Q: What is the function of this device?
- A: It is a quad non-inverting buffer with 3-state outputs, used for signal buffering and bus driving.
- Q: How many channels does it have?
- A: It has 4 independent channels, each with its own enable input.
- Q: What is the output type?
- A: The outputs are 3-State, allowing them to be placed in a high-impedance state.
- Q: What is the voltage range?
- A: It operates from 4.5V to 5.5V, ideal for 5V logic systems.
- Q: What package is available?
- A: It comes in a 14-pin SOIC (0.154", 3.90mm width) package.
×
