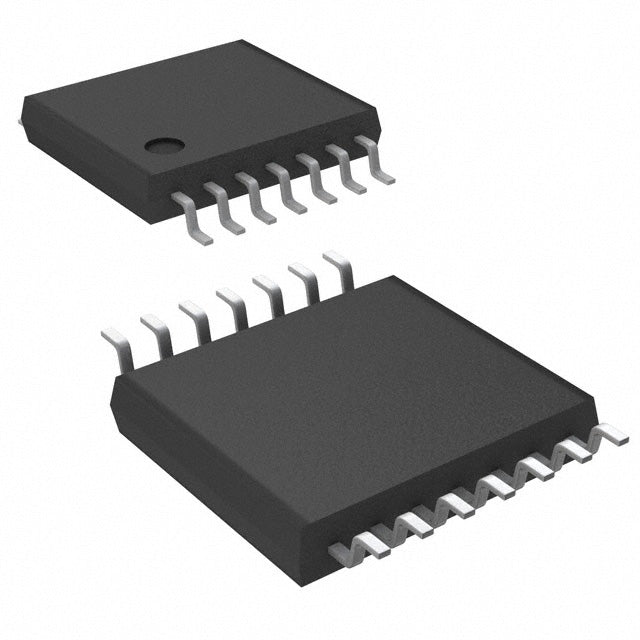

onsemi MC74ACT125DTR2G
Prix habituel
$0.76
Prix habituel
$0.80
Prix promotionnel
$0.76
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.76 | $0.76 |
| 15+ | $0.74 | $11.10 |
| 25+ | $0.72 | $18.00 |
| 50+ | $0.68 | $34.00 |
| 100+ | $0.60 | $60.00 |
| N+ | $0.12 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74ACT |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 4 |
| Nombre de bits par élément | 1 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 4,5 V ~ 5,5 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 14-TSSOP (0,173", largeur 4,40 mm) |
| Emballage du dispositif du fournisseur | 14-TSSOP |
| RoHS |  |
Base Product Number ：
MC74ACT125
MC74ACT125DTR2G.pdf
- Q: What is the logic family of the MC74ACT125DTR2G?
- A: It belongs to the 74ACT logic family, which is known for high-speed operation and TTL-compatible inputs.
- Q: What is the function of this IC?
- A: It is a quad (4-channel) non-inverting buffer with 3-State outputs, used for signal buffering and driving.
- Q: How many channels does it have?
- A: It has 4 independent channels, each with its own 3-State output enable control.
- Q: What is the output type?
- A: The outputs are 3-State, allowing them to be disabled (high-impedance) for bus sharing.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, making it suitable for standard 5V TTL systems.
- Q: What package is available?
- A: It is available in a 14-TSSOP package, which is a small surface-mount package for space-saving designs.
×
