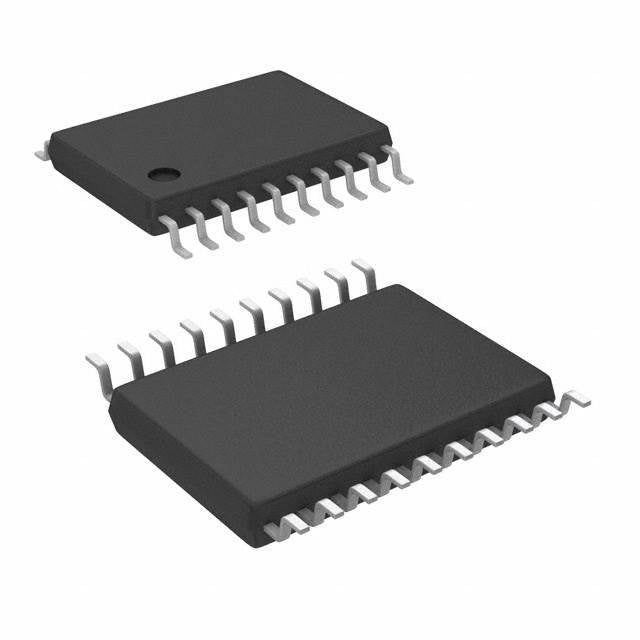

onsemi MC74HC244ADTG
Prix habituel
$1.36
Prix habituel
$1.43
Prix promotionnel
$1.36
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $1.32 | $19.80 |
| 25+ | $1.29 | $32.25 |
| 50+ | $1.22 | $61.00 |
| 100+ | $1.07 | $107.00 |
| N+ | $0.21 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74HC |
| Conditionnement | Usine | Tube |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 4 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 7,8 mA, 7,8 mA |
| Tension - Alimentation | 2V ~ 6V |
| Température de fonctionnement | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-TSSOP (0,173", largeur 4,40 mm) |
| Emballage du dispositif du fournisseur | 20-TSSOP |
| RoHS |  |
Base Product Number ：
MC74HC244A
MC74HC244ADTG.pdf
- Q: What logic family does the MC74HC244ADTG belong to?
- A: It belongs to the 74HC (High-Speed CMOS) logic family.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels (4-bit per channel, 8 total) and 3-State outputs.
- Q: What is the operating voltage range?
- A: It operates from 2V to 6V, making it compatible with TTL and CMOS levels.
- Q: What is the output type?
- A: 3-State outputs allow connection to shared buses with high-impedance control.
- Q: What package is available?
- A: It comes in a 20-TSSOP (4.40mm width) package.
- Q: What is the output current capability?
- A: It can source or sink 7.8mA per output.
×
