onsemi MC74HC541ADTR2G
Prix habituel
$1.18
Prix habituel
$1.24
Prix promotionnel
$1.18
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.18 | $1.18 |
| 15+ | $1.14 | $17.10 |
| 25+ | $1.12 | $28.00 |
| 50+ | $1.05 | $52.50 |
| 100+ | $0.93 | $93.00 |
| N+ | $0.19 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74HC |
| Conditionnement | Usine | Ruban découpé (CT) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 7,8 mA, 7,8 mA |
| Tension - Alimentation | 2V ~ 6V |
| Température de fonctionnement | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-TSSOP (0,173", largeur 4,40 mm) |
| Emballage du dispositif du fournisseur | 20-TSSOP |
| RoHS |  |
Base Product Number ：
MC74HC541A
MC74HC541ADTR2G.pdf
- Q: What logic family does the MC74HC541ADTR2G belong to?
- A: It belongs to the 74HC (High-Speed CMOS) family, offering a balance of speed and power consumption.
- Q: What is the function of this IC?
- A: It is an octal (8-bit) non-inverting buffer/line driver with 3-State outputs, designed for bus driving.
- Q: How many channels does it have?
- A: It has 8 channels, providing a full byte-wide buffering solution.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for connection to a shared bus with high-impedance state when disabled.
- Q: What is the operating voltage range?
- A: It operates from 2V to 6V, making it compatible with both 3.3V and 5V systems, and even 6V logic.

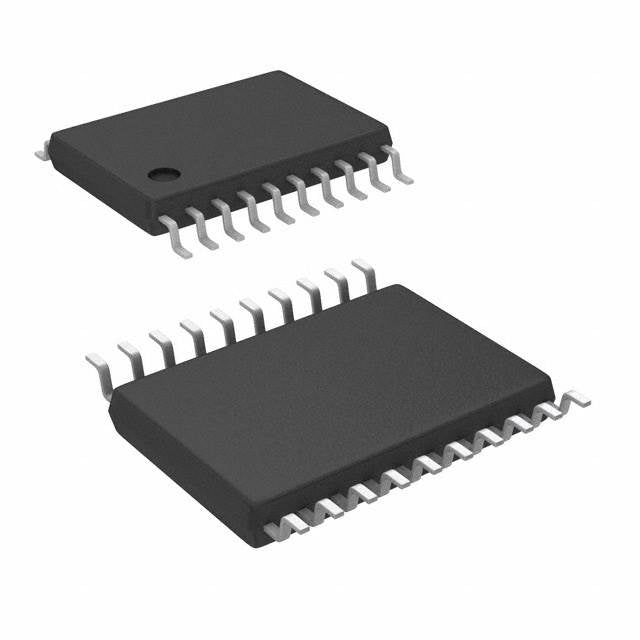

- Q: What package is it available in?
- A: It is offered in a 20-pin TSSOP package (0.173" width), suitable for surface-mount applications.
×
