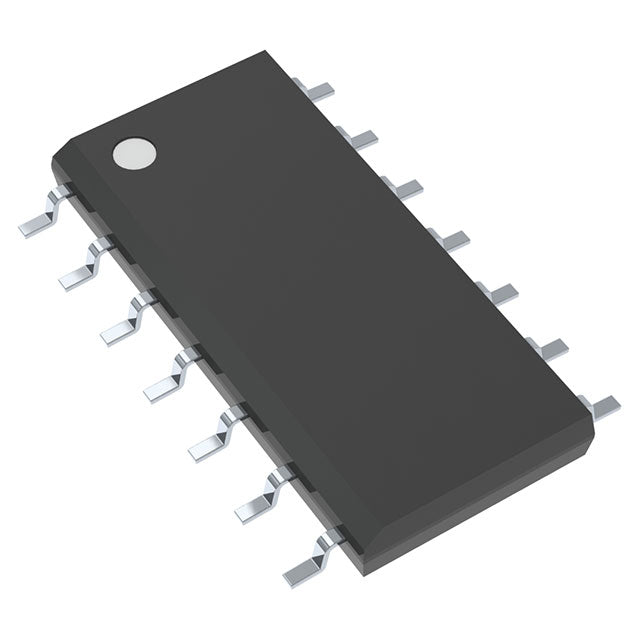

onsemi MC74VHC125DG
Prix habituel
$1.19
Prix habituel
$1.25
Prix promotionnel
$1.19
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.19 | $1.19 |
| 15+ | $1.15 | $17.25 |
| 25+ | $1.13 | $28.25 |
| 50+ | $1.06 | $53.00 |
| 100+ | $0.94 | $94.00 |
| N+ | $0.19 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74VHC |
| Conditionnement | Usine | Tube |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 4 |
| Nombre de bits par élément | 1 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 8 mA, 8 mA |
| Tension - Alimentation | 2V ~ 5,5V |
| Température de fonctionnement | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 14-SOIC (0,154", 3,90 mm de largeur) |
| Emballage du dispositif du fournisseur | 14-SOIC |
| RoHS |  |
Base Product Number ：
MC74VHC125
MC74VHC125DG.pdf
- Q: What logic family does the MC74VHC125DG belong to?
- A: It belongs to the 74VHC (Very High-Speed CMOS) family, offering high-speed performance with low power consumption.
- Q: What is the function of this IC?
- A: It is a quad (4-channel) non-inverting buffer with 3-State outputs, ideal for bus-oriented systems.
- Q: How many channels does it have?
- A: It has 4 independent buffer channels, each with its own 3-State output enable control.
- Q: What is the output type?
- A: The outputs are 3-State, allowing connection to a shared bus with high-impedance (Hi-Z) state when disabled.
- Q: What is the operating voltage range?
- A: It operates from 2V to 5.5V, making it compatible with 3.3V and 5V logic systems.
- Q: What package is available?
- A: It comes in a 14-pin SOIC package (0.154" width), suitable for surface-mount applications.
×
