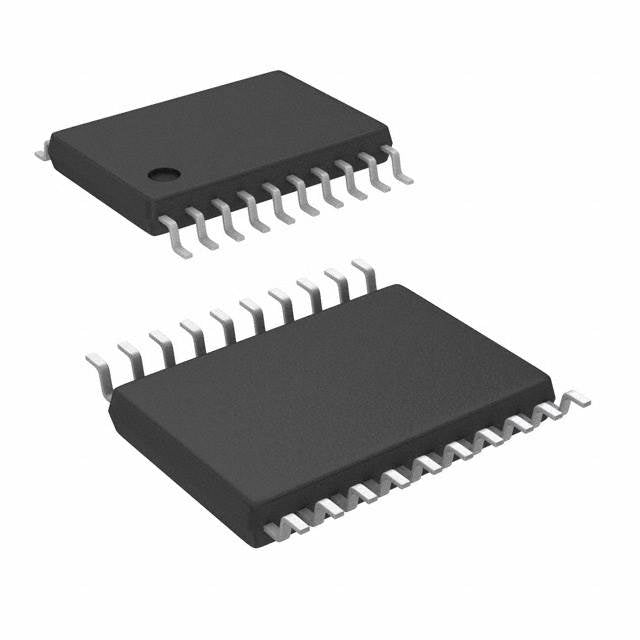

onsemi MC74VHCT541ADTRG
Prix habituel
$1.56
Prix habituel
$1.64
Prix promotionnel
$1.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.56 | $1.56 |
| 15+ | $1.51 | $22.65 |
| 25+ | $1.48 | $37.00 |
| 50+ | $1.39 | $69.50 |
| 100+ | $1.23 | $123.00 |
| N+ | $0.25 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74VHCT |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 8 mA, 8 mA |
| Tension - Alimentation | 4,5 V ~ 5,5 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-TSSOP (0,173", largeur 4,40 mm) |
| Emballage du dispositif du fournisseur | 20-TSSOP |
| RoHS |  |
Base Product Number ：
MC74VHCT541A
MC74VHCT541ADTRG.pdf
- Q: What is the logic family of the MC74VHCT541ADTRG?
- A: It belongs to the 74VHCT family, which is a high-speed CMOS family with TTL-compatible inputs.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 3-State outputs, used to buffer and drive digital signals.
- Q: How many channels does it have?
- A: It has 1 channel, but the 20-pin package contains 8 buffer gates.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for high-impedance states when disabled.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, making it ideal for 5V systems.
- Q: What package is available?
- A: It is available in a 20-TSSOP package.
×
