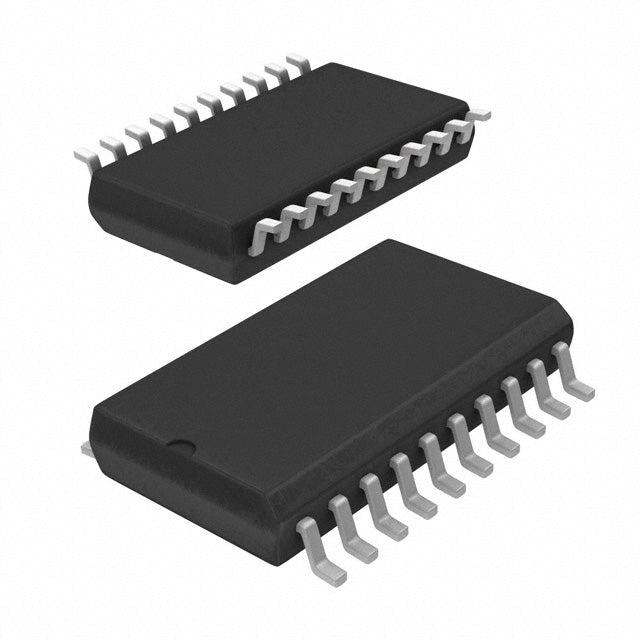

onsemi MM74HC244WMX
Prix habituel
$1.37
Prix habituel
$1.44
Prix promotionnel
$1.37
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.37 | $1.37 |
| 15+ | $1.32 | $19.80 |
| 25+ | $1.30 | $32.50 |
| 50+ | $1.22 | $61.00 |
| 100+ | $1.08 | $108.00 |
| N+ | $0.22 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 74HC |
| Conditionnement | Usine | Ruban découpé (CT) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 4 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 7,8 mA, 7,8 mA |
| Tension - Alimentation | 2V ~ 6V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-SOIC (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 20-SOIC |
| RoHS |  |
Base Product Number ：
MM74HC244WM
MM74HC244WMX.pdf
- Q: What logic family does the MM74HC244WMX belong to?
- A: It is part of the 74HC (High-Speed CMOS) family, offering a balance of speed and power efficiency.
- Q: What is the function of this device?
- A: It is a non-inverting buffer with 2 channels, used to strengthen signals for driving loads.
- Q: What type of outputs does it have?
- A: It has 3-State outputs, allowing the device to be disconnected from a bus when not active.
- Q: What is the supply voltage range?
- A: It operates from 2V to 6V, making it compatible with both 3.3V and 5V logic systems.
- Q: What is the output current capability?
- A: It can source and sink 7.8mA, suitable for driving standard CMOS inputs and small loads.
- Q: What package is this IC available in?
- A: It comes in a 20-pin SOIC (Small Outline Integrated Circuit) package with a 7.50mm width.
×
