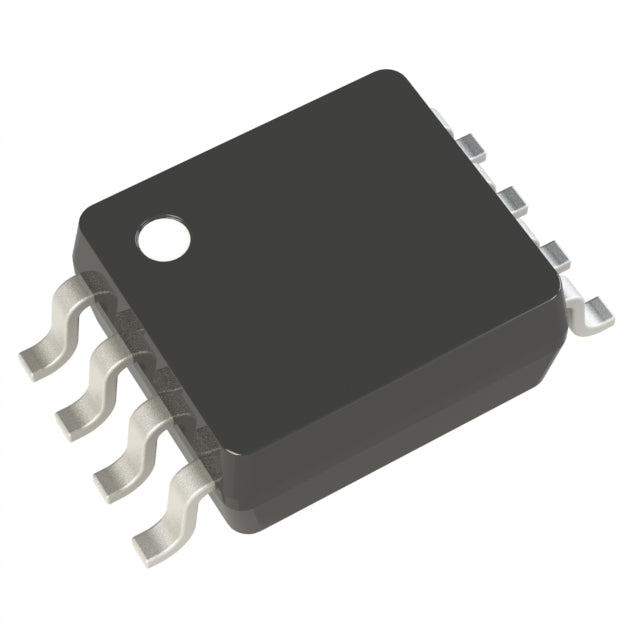

onsemi NL37WZ07USG
Prix habituel
$94,999.99
Prix habituel
$99,999.99
Prix promotionnel
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | onsemi |
| Gamme de produits | 37WZ |
| Conditionnement | Usine | |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 3 |
| Nombre de bits par élément | 1 |
| Type d'entrée | - |
| Type de sortie | Égout ouvert |
| Courant - Sortie haute, basse | -, 32 mA |
| Tension - Alimentation | 1,65 V ~ 5,5 V |
| Température de fonctionnement | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 8-VFSOP (0,091", largeur 2,30 mm) |
| Emballage du dispositif du fournisseur | US8 |
| RoHS |  |
Base Product Number ：
NL37WZ07USG
NL37WZ07USG.pdf
- Q: What is the logic family of the NL37WZ07USG?
- A: It belongs to the 37WZ series, a low-voltage, high-speed CMOS logic family from onsemi.
- Q: What is the function and number of channels?
- A: It is a triple (3-channel) non-inverting buffer with open-drain outputs, allowing for wired-OR connections.
- Q: What is the operating voltage range?
- A: The supply voltage ranges from 1.65V to 5.5V, making it suitable for low-voltage and mixed-voltage systems.
- Q: What is the output type?
- A: The outputs are open-drain, requiring an external pull-up resistor to define the high-level voltage.
- Q: What is the output current capability?
- A: It can sink up to 32mA per output, making it suitable for driving LEDs or low-impedance loads.
- Q: What is the package type?
- A: It is available in an 8-VFSOP (Very Fine-pitch Small Outline Package) with a 2.30mm width.
×
