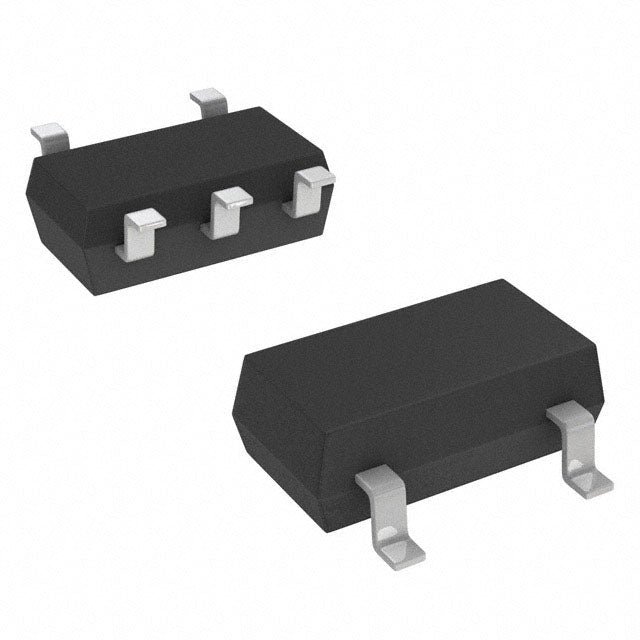

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Richtek USA Inc.
RT9742QNGJ5
Puces et circuits intégrés
Richtek USA Inc.
IC PDSLD USB POWER SWITCH TSOT-23-5
RT9742QNGJ5
Prix habituel
$0.91
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Prix habituel
$0.96
Prix promotionnel
Prix unitaire
par
| quantity | unit price | total price |
| 1 | $0.91 | $0.91 |
| 15+ | $0.88 USD | $13.25 USD |
| 25+ | $0.86 USD | $21.60 USD |
| 50+ | $0.82 USD | $40.80 USD |
| 100+ | $0.72 USD | $72.00 USD |
| N+ | $0.48 USD | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Richtek USA Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 70mOhm |
| nput Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
Datasheets:
RT9742QNGJ5
.pdf
×
