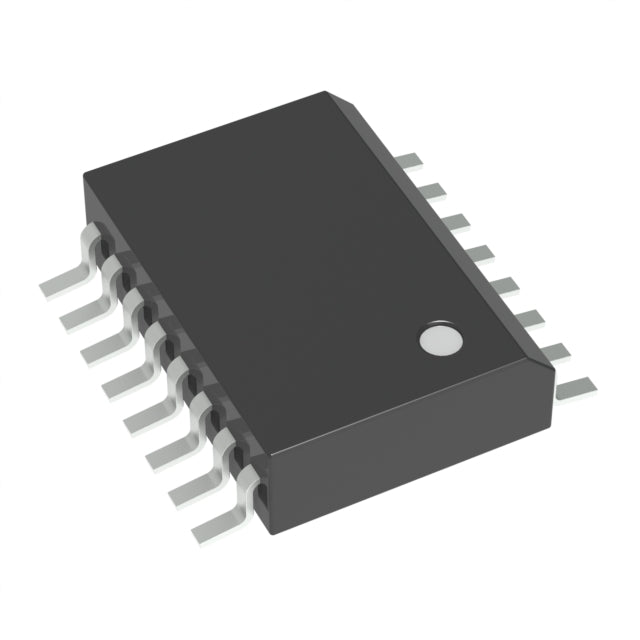

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
onsemi
SG3525ADWR2
SG3525ADWR2
Prix habituel
Dhs. 3.00
Prix habituel
Dhs. 3.15
Prix promotionnel
Dhs. 3.00
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.00 AED | Dhs. 3.00 AED |
| 15+ | Dhs. 2.90 AED | Dhs. 43.50 AED |
| 25+ | Dhs. 2.84 AED | Dhs. 71.00 AED |
| 50+ | Dhs. 2.68 AED | Dhs. 134.00 AED |
| 100+ | Dhs. 2.36 AED | Dhs. 236.00 AED |
| N+ | Dhs. 0.47 AED | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 400kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Datasheets:
SG3525ADWR2
.pdf
×
