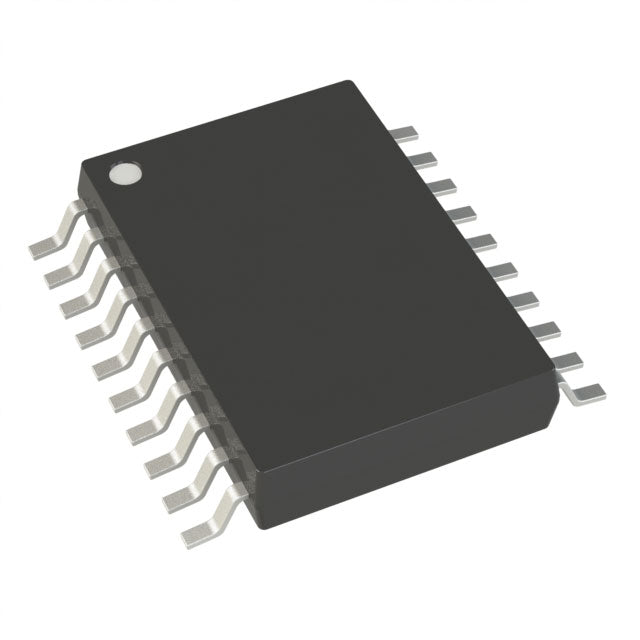

Texas Instruments SN74AC541DGSR
Prix habituel
$0.38
Prix habituel
$0.40
Prix promotionnel
$0.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.38 | $0.38 |
| 15+ | $0.37 | $5.55 |
| 25+ | $0.36 | $9.00 |
| 50+ | $0.34 | $17.00 |
| 100+ | $0.30 | $30.00 |
| N+ | $0.06 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74AC |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 1,5 V ~ 6 V |
| Température de fonctionnement | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-TFSOP (0,118", largeur 3,00 mm) |
| Emballage du dispositif du fournisseur | 20-VSSOP |
| RoHS |  |
Base Product Number ：
SN74AC541
SN74AC541DGSR.pdf
- Q: What logic family does the SN74AC541DGSR belong to?
- A: It is part of the 74AC family, which offers high-speed CMOS operation with a wide voltage range.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 3-State outputs, designed for bus-oriented applications.
- Q: How many channels does it have?
- A: It has 8 channels (octal buffer), though the provided data lists 1 channel; please verify the actual channel count from the datasheet.
- Q: What is the output type?
- A: The outputs are 3-State, allowing high, low, or high-impedance states for bus sharing.
- Q: What is the operating voltage range?
- A: It operates from 1.5V to 6V, making it suitable for both 3.3V and 5V systems.
- Q: What package is available?
- A: It comes in a 20-pin TFSOP package (0.118", 3.00mm width), ideal for space-constrained designs.
×
