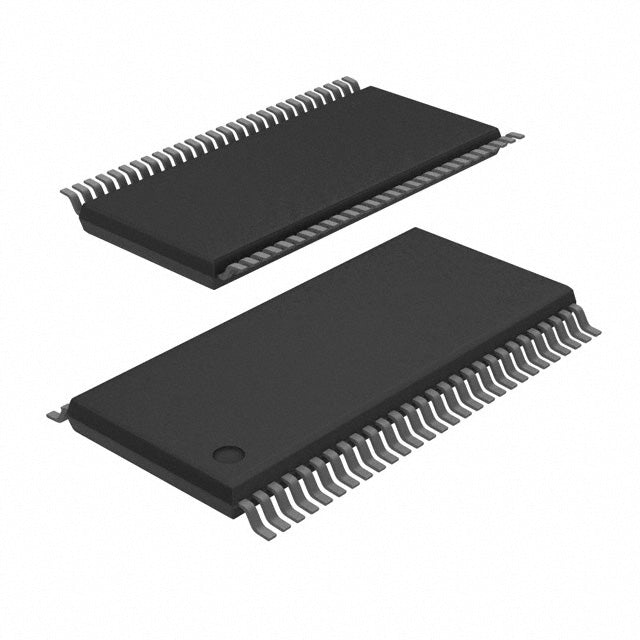

Texas Instruments SN74ALVCH16543DLR
Prix habituel
$1.83
Prix habituel
$1.93
Prix promotionnel
$1.83
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.83 | $1.83 |
| 15+ | $1.78 | $26.70 |
| 25+ | $1.74 | $43.50 |
| 50+ | $1.64 | $82.00 |
| 100+ | $1.45 | $145.00 |
| N+ | $0.29 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74ALVCH |
| Conditionnement | Marché | Cut Tape (CT) |
| État de la pièce | Actif |
| Type logique | Émetteur-récepteur non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 1,65 V ~ 3,6 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 56-BSSOP (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 56-SSOP |
| RoHS |  |
Base Product Number ：
SN74ALVCH16543
SN74ALVCH16543DLR.pdf
- Q: What logic family is the SN74ALVCH16543DLR?
- A: It belongs to the 74ALVCH family, offering low-voltage, high-speed operation.
- Q: What is the function of this IC?
- A: It is a 2-channel, non-inverting transceiver with 3-State outputs for bidirectional data flow.
- Q: How many channels does it have?
- A: It features 2 channels, supporting 16-bit data paths.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for high-impedance states to enable bus sharing.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, compatible with low-voltage systems.
- Q: What package is available?
- A: It comes in a 56-BSSOP (0.295", 7.50mm Width) package.
×
