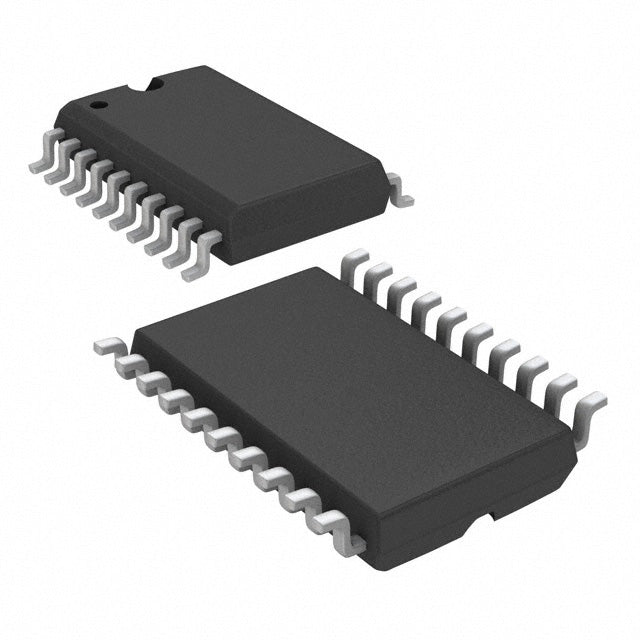

Texas Instruments SN74HCT645DWR
Prix habituel
$1.41
Prix habituel
$1.48
Prix promotionnel
$1.41
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.41 | $1.41 |
| 15+ | $1.36 | $20.40 |
| 25+ | $1.33 | $33.25 |
| 50+ | $1.26 | $63.00 |
| 100+ | $1.11 | $111.00 |
| N+ | $0.22 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74HCT |
| Conditionnement | Marché | Cut Tape (CT) |
| État de la pièce | Actif |
| Type logique | Émetteur-récepteur non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 6 mA, 6 mA |
| Tension - Alimentation | 4,5 V ~ 5,5 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-SOIC (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 20-SOIC |
| RoHS |  |
Base Product Number ：
SN74HCT645
SN74HCT645DWR.pdf
- Q: What is the logic family of the SN74HCT645DWR?
- A: It belongs to the 74HCT family, which is TTL-compatible and operates at 5V.
- Q: What is the function of this IC?
- A: It is an octal bus transceiver with non-inverting outputs, allowing bidirectional data flow.
- Q: How many channels does it have?
- A: It has 8 channels (1 byte), controlled by a single direction pin.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, making it ideal for 5V systems.
- Q: What package is available?
- A: It comes in a 20-SOIC (7.50mm width) package.
×
