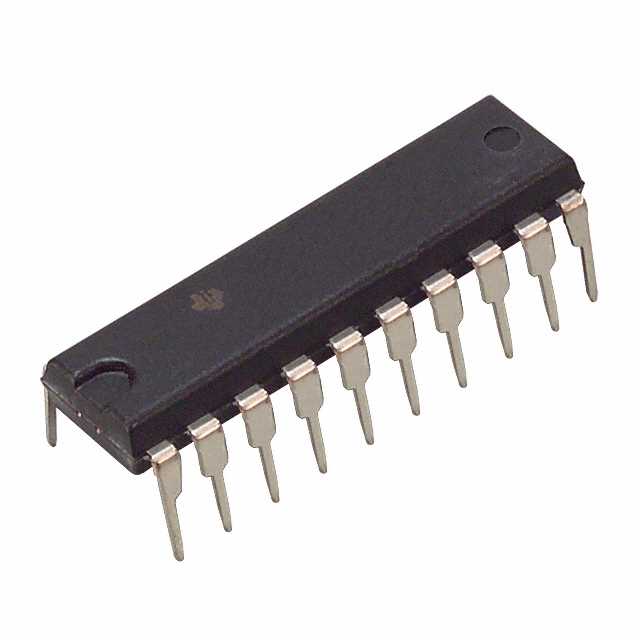

Texas Instruments SN74HCT645N
Prix habituel
$2.00
Prix habituel
$2.11
Prix promotionnel
$2.00
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.00 | $2.00 |
| 15+ | $1.94 | $29.10 |
| 25+ | $1.90 | $47.50 |
| 50+ | $1.79 | $89.50 |
| 100+ | $1.58 | $158.00 |
| N+ | $0.32 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74HCT |
| Conditionnement | Marché | Tube |
| État de la pièce | Actif |
| Type logique | Émetteur-récepteur non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 6 mA, 6 mA |
| Tension - Alimentation | 4,5 V ~ 5,5 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Trou traversant |
| Emballage / Étui | 20-DIP (0,300", 7,62 mm) |
| Emballage du dispositif du fournisseur | 20-PDIP |
| RoHS |  |
Base Product Number ：
SN74HCT645
SN74HCT645N.pdf
- Q: What logic family is the SN74HCT645N?
- A: It belongs to the 74HCT (High-Speed CMOS with TTL compatibility) logic family, operating at 4.5V to 5.5V.
- Q: What is the function of this IC?
- A: It is a non-inverting transceiver with 1 channel (8-bit), providing bidirectional data transfer.
- Q: What is the output type?
- A: It has 3-State outputs, allowing multiple devices to share a bus.
- Q: What is the output current capability?
- A: It can source or sink 6mA per output.
- Q: What is the operating voltage range?
- A: The supply voltage is 4.5V to 5.5V, making it TTL-compatible.
- Q: What package is available?
- A: It comes in a 20-DIP (0.300", 7.62mm) package, ideal for through-hole designs.
×
