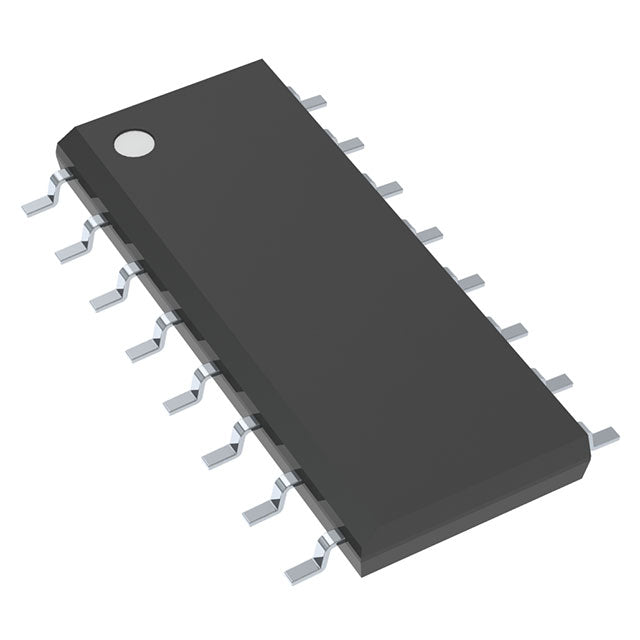

Texas Instruments SN74LS367AD
Prix habituel
$2.80
Prix habituel
$1.39
Prix promotionnel
$2.80
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.80 | $2.80 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74LS |
| Conditionnement | Tube | |
| État de la pièce | Obsolète |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 2, 4 (Hex) |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 2,6 mA, 24 mA |
| Tension - Alimentation | 4,75 V ~ 5,25 V |
| Température de fonctionnement | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 16-SOIC (0,154", 3,90 mm de largeur) |
| Emballage du dispositif du fournisseur | 16-SOIC |
| RoHS |  |
Base Product Number ：
SN74LS367AD
SN74LS367AD.pdf
- Q: What is the logic family of the SN74LS367AD?
- A: It is from the 74LS (Low-Power Schottky) TTL logic family, known for its speed and compatibility with TTL levels.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels, designed to drive bus lines or other high-capacitance loads.
- Q: What is the output type?
- A: It features 3-State outputs, allowing the outputs to be disabled (high-impedance) for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates within a narrow range of 4.75V to 5.25V, which is standard for 5V TTL logic systems.
- Q: What is the package type?
- A: It is available in a 16-SOIC package with a 3.90mm body width.
- Q: What is the output current capability?
- A: It can source 2.6mA and sink 24mA, providing strong sink capability for driving TTL loads.
×
