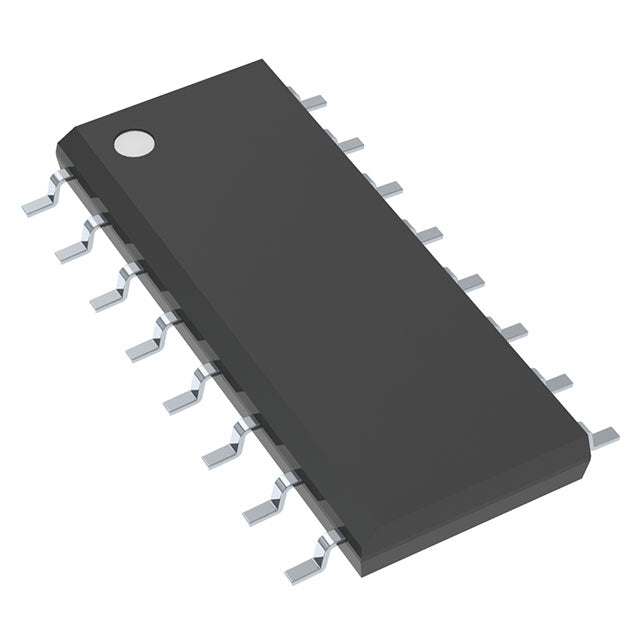

Texas Instruments SN74LS367ADR
Prix habituel
$1.10
Prix habituel
$1.16
Prix promotionnel
$1.10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.10 | $1.10 |
| 15+ | $1.07 | $16.05 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.87 | $87.00 |
| N+ | $0.17 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74LS |
| Conditionnement | Marché | Cut Tape (CT) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 2, 4 (Hex) |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 2,6 mA, 24 mA |
| Tension - Alimentation | 4,75 V ~ 5,25 V |
| Température de fonctionnement | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 16-SOIC (0,154", 3,90 mm de largeur) |
| Emballage du dispositif du fournisseur | 16-SOIC |
| RoHS |  |
Base Product Number ：
SN74LS367A
SN74LS367ADR.pdf
- Q: What is the logic family of the SN74LS367ADR?
- A: It belongs to the 74LS family, which is a low-power Schottky TTL logic series.
- Q: What is the function of this IC?
- A: It is a hex non-inverting buffer with 3-State outputs, ideal for bus driving.
- Q: How many channels does it have?
- A: It has 2 channels, one with 4 bits and one with 2 bits, for a total of 6 buffer circuits.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for high-impedance states to share a bus.
- Q: What is the operating voltage range?
- A: It operates from 4.75V to 5.25V, making it suitable for standard 5V TTL systems.
- Q: What package is available?
- A: It comes in a 16-pin SOIC (D) package with a 3.90mm width.
×
