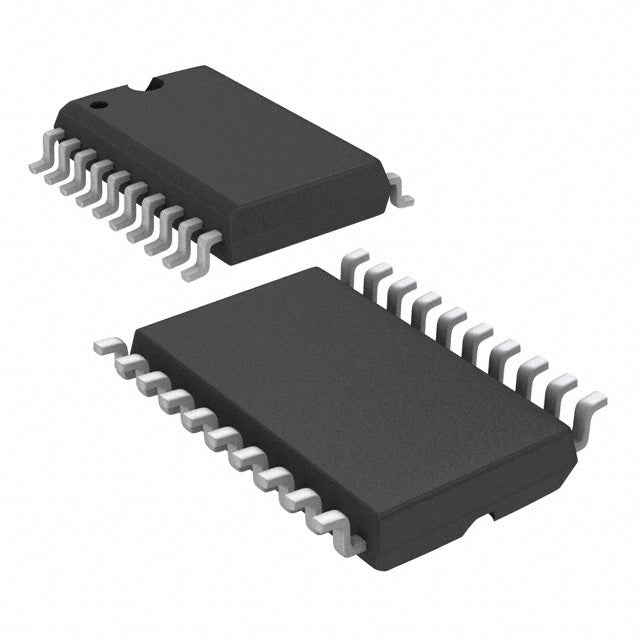

Texas Instruments SN74LVC2244ADW
Prix habituel
$1.24
Prix habituel
$1.30
Prix promotionnel
$1.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.24 | $1.24 |
| 15+ | $1.20 | $18.00 |
| 25+ | $1.17 | $29.25 |
| 50+ | $1.11 | $55.50 |
| 100+ | $0.98 | $98.00 |
| N+ | $0.20 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74LVC |
| Conditionnement | Marché | Tube |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 2 |
| Nombre de bits par élément | 4 |
| Type d'entrée | - |
| Type de sortie | 3-États |
| Courant - Sortie haute, basse | 12 mA, 12 mA |
| Tension - Alimentation | 1,65 V ~ 3,6 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 20-SOIC (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 20-SOIC |
| RoHS |  |
Base Product Number ：
SN74LVC2244A
SN74LVC2244ADW.pdf
- Q: What logic family is the SN74LVC2244ADW?
- A: It belongs to the 74LVC family, which supports low-voltage operation with 5V tolerant inputs.
- Q: What is the function of this IC?
- A: It is a dual 4-bit (octal) non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 2 channels of 4 bits each, totaling 8 buffer lines.
- Q: What is the output type?
- A: 3-State outputs allow connection to shared buses with high-impedance control.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V, ideal for low-power 3.3V and 1.8V systems.
- Q: What package is available?
- A: It comes in a 20-SOIC (0.295", 7.50mm Width) package.
×
