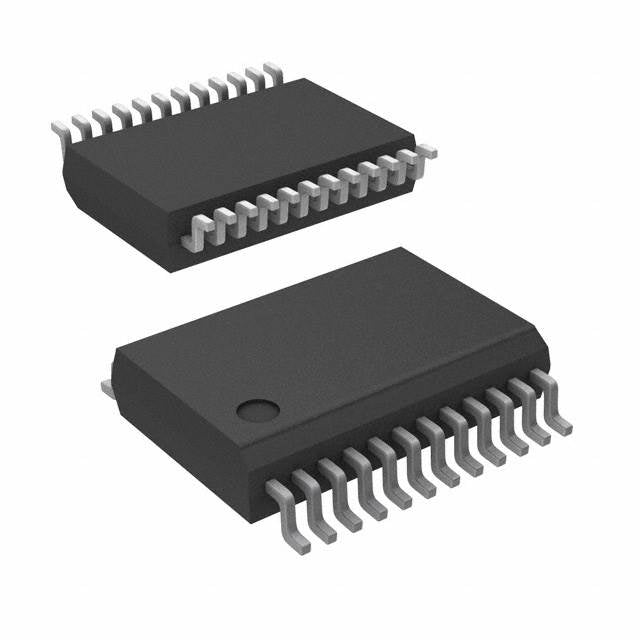

Texas Instruments SN74LVC543ADBR
Prix habituel
$1.49
Prix habituel
$1.57
Prix promotionnel
$1.49
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.49 | $1.49 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.41 | $35.25 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.18 | $118.00 |
| N+ | $0.24 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74LVC |
| Conditionnement | Marché | Cut Tape (CT) |
| État de la pièce | Actif |
| Type logique | Émetteur-récepteur non inverseur |
| Nombre d'éléments | 1 |
| Nombre de bits par élément | 8 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 24 mA, 24 mA |
| Tension - Alimentation | 1,65 V ~ 3,6 V |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 24-SSOP (0,209", 5,30 mm de largeur) |
| Emballage du dispositif du fournisseur | 24-SSOP |
| RoHS |  |
Base Product Number ：
SN74LVC543
SN74LVC543ADBR.pdf
- Q: What is the logic family of the SN74LVC543ADBR?
- A: It belongs to the 74LVC family, which is known for low-voltage, low-power, and high-speed operation.
- Q: What is the function of this IC?
- A: It is an octal (8-bit) non-inverting transceiver, allowing bidirectional data transfer.
- Q: How many channels does it have?
- A: It has 1 channel of 8 bits, functioning as an octal transceiver.
- Q: What is the output type?
- A: The outputs are 3-State, enabling connection to shared buses.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V, compatible with 1.8V, 2.5V, and 3.3V systems.
- Q: What package is it available in?
- A: It comes in a 24-SSOP (0.209", 5.30mm Width) package.
×
