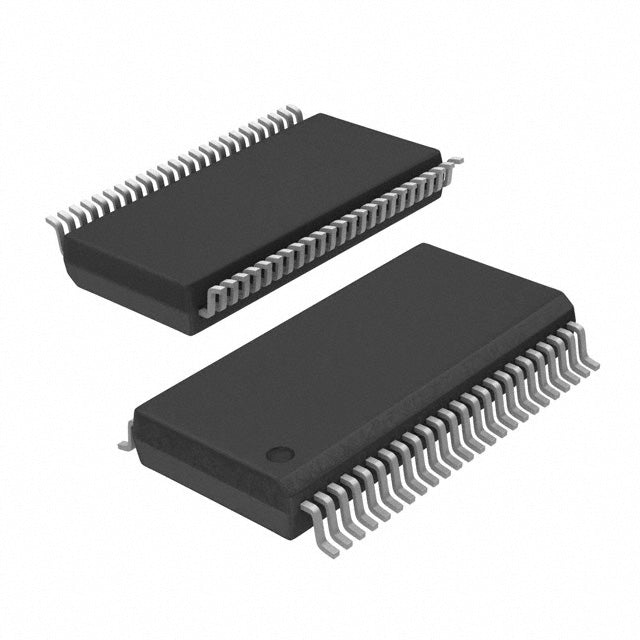

Texas Instruments SN74LVTH16244ADLR
Prix habituel
$1.47
Prix habituel
$1.55
Prix promotionnel
$1.47
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.47 | $1.47 |
| 15+ | $1.43 | $21.45 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.32 | $66.00 |
| 100+ | $1.16 | $116.00 |
| N+ | $0.23 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | Instruments de Texas |
| Gamme de produits | 74LVTH |
| Conditionnement | Bande coupée (CT) | Bande et bobine (TR) |
| État de la pièce | Actif |
| Type logique | Tampon, non inverseur |
| Nombre d'éléments | 4 |
| Nombre de bits par élément | 4 |
| Type d'entrée | - |
| Type de sortie | 3-État |
| Courant - Sortie haute, basse | 32 mA, 64 mA |
| Tension - Alimentation | 2,7 V ~ 3,6 V |
| Température de fonctionnement | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Type de montage | Montage en surface |
| Emballage / Étui | 48-BSSOP (0,295", largeur 7,50 mm) |
| Emballage du dispositif du fournisseur | 48-SSOP |
| RoHS |  |
Base Product Number ：
SN74LVTH16244
SN74LVTH16244ADLR.pdf
- Q: What is the logic family of the SN74LVTH16244ADLR?
- A: It belongs to the 74LVTH family, which is designed for low-voltage, high-drive applications.
- Q: What is the function of this IC?
- A: It is a 16-bit (4-channel) non-inverting buffer, used to buffer and drive signals.
- Q: How many channels does it have?
- A: It has 4 channels, each handling 4 bits, for a total of 16 bits.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bus sharing and isolation.
- Q: What is the voltage range?
- A: It operates from 2.7V to 3.6V, making it suitable for 3.3V systems.
- Q: What package is it available in?
- A: It comes in a 48-BSSOP (0.295", 7.50mm Width) package.
×
