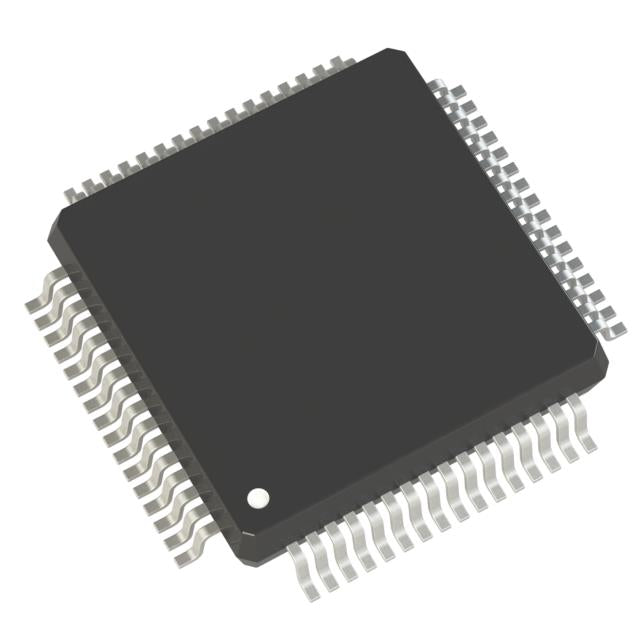

STMicroelectronics STM32F732RET6
Prix habituel
$16.95
Prix habituel
$12.11
Prix promotionnel
$16.95
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.95 | $16.95 |
| 15+ | $11.14 | $167.10 |
| 25+ | $10.90 | $272.50 |
| 50+ | $10.29 | $514.50 |
| 100+ | $9.08 | $908.00 |
| N+ | $1.82 | Price Inquiry |
Frais d'expédition calculés à l'étape de paiement.
Request Quote / Inquiry
| Attributs du produit | Valeur de la propriété |
| Fabricant | STMicroelectronics |
| Gamme de produits | STM32F7 |
| Conditionnement | Plateau | |
| Processeur principal | ARM® Cortex®-M7 |
| Taille du noyau | 32 bits monocœur |
| Vitesse | 216 MHz |
| Connectivité | CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Périphériques | Détection/réinitialisation de sous-tension, DMA, I2S, POR, PWM, WDT |
| Nombre d'E/S | 50 |
| Taille de la mémoire du programme | 512 Ko (512 Ko x 8) |
| Type de mémoire de programme | ÉCLAIR |
| Taille de l'EEPROM | - |
| Taille de la RAM | 256K x 8 |
| Tension d'alimentation (Vcc/Vdd) | 1,7 V ~ 3,6 V |
| Convertisseurs de données | A/D 16x12b ; D/A 2x12b |
| Type d'oscillateur | Interne |
| Température de fonctionnement | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Type de montage | Montage en surface |
| Emballage du dispositif du fournisseur | 64-LQFP (10x10) |
| Emballage / Étui | 64-LQFP |
| RoHS |  |
Base Product Number ：
STM32F732RE
STM32F732RET6.pdf
- Q: What is the core architecture of the STM32F732RET6?
- A: It features an ARM Cortex-M7 core running at up to 216MHz, offering superior performance for compute-intensive tasks.
- Q: What is the supply voltage range?
- A: The device operates from 1.7V to 3.6V, supporting low-power and battery-operated designs.
- Q: How much Flash and RAM does it have?
- A: It provides 512KB of Flash memory and 256KB of SRAM, ideal for complex firmware and data buffering.
- Q: What package is available?
- A: It is housed in a 64-pin LQFP package, balancing I/O count with compact footprint.
- Q: What are the key integrated peripherals?
- A: It includes DMA, I2S, PWM, POR, and WDT, along with brown-out detection for enhanced reliability.
×
