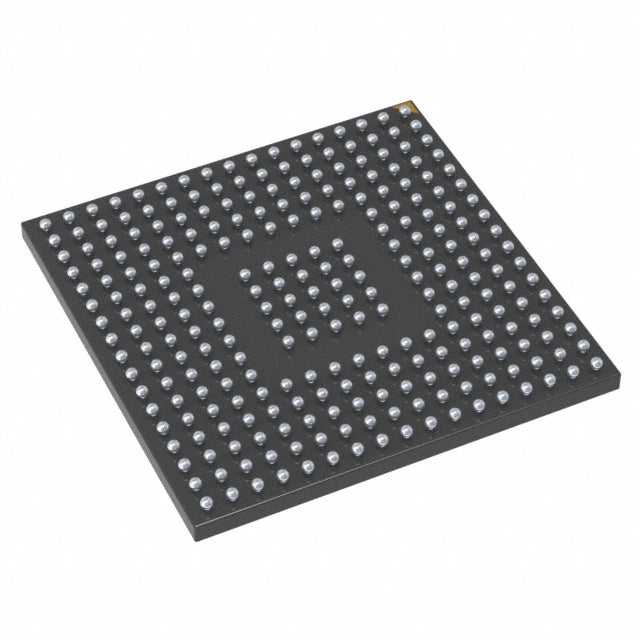

STMicroelectronics STM32H745IIK6TR

  • STM32H745IIK6TR STMicroelectronics STMicroelectronics Microcontrôleur 32 bits 2 Mo Flash 176UFBGA Original Authentic IC Component
1 1
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
$50.15
$12.54 $50.15
Promotion Épuisé
Quantity Unit Price Total Price
1 $50.15 $50.15
15+ $11.54 $173.10
25+ $11.29 $282.25
50+ $10.66 $533.00
100+ $9.41 $941.00
N+ $1.88 Price Inquiry
Frais d'expédition calculés à l'étape de paiement.
Component Recycling

Request Quote / Inquiry

Attributs du produit Valeur de la propriété
Fabricant STMicroelectronics
Gamme de produits STM32H7
Conditionnement Bande et bobine (TR) | NULL
Processeur principal ARM® Cortex®-M4, Cortex®-M7
Taille du noyau Processeur double cœur 32 bits
Vitesse 240 MHz, 480 MHz
Connectivité CANbus, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SMBus, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Périphériques Détection/réinitialisation de sous-tension, DMA, I2S, LCD, POR, PWM, WDT
Nombre d'E/S 128
Taille de la mémoire du programme 2 Mo (2 Mo x 8)
Type de mémoire de programme ÉCLAIR
Taille de l'EEPROM -
Taille de la RAM 1M x 8
Tension d'alimentation (Vcc/Vdd) 1,62 V ~ 3,6 V
Convertisseurs de données Convertisseur A/D 36x16b Sigma-Delta ; Convertisseur N/A 2x12b
Type d'oscillateur Externe, Interne
Température de fonctionnement -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Type de montage Montage en surface
Emballage du dispositif du fournisseur 176+25UFBGA (10x10)
Emballage / Étui 201-UFBGA
RoHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
Base Product Number ： STM32H745IIK6
1MB RAM 2MB flash 32-bit MCU 480MHz ARM Cortex-M4 ARM Cortex-M7 audio processing automotive dual-core HMI industrial control medical robotics STM32H7 STM32H745IIK6TR UFBGA-201
Q: What is the maximum clock speed of the STM32H745IIK6TR?
A: The dual-core design runs at 480 MHz for the Cortex-M7 and 240 MHz for the Cortex-M4.
Q: What is the operating voltage range?
A: It operates from 1.62V to 3.6V, suitable for low-power and standard applications.
Q: How much memory does this MCU include?
A: It features 2MB of program flash and 1MB of RAM.
Q: What package is available?
A: It comes in a 201-UFBGA package, ideal for compact PCB designs.
Q: Does it support LCD and PWM?
A: Yes, it includes an LCD controller, PWM timers, DMA, I2S, and watchdog timers.
